Fantini CosmiSwitches & Thermostats

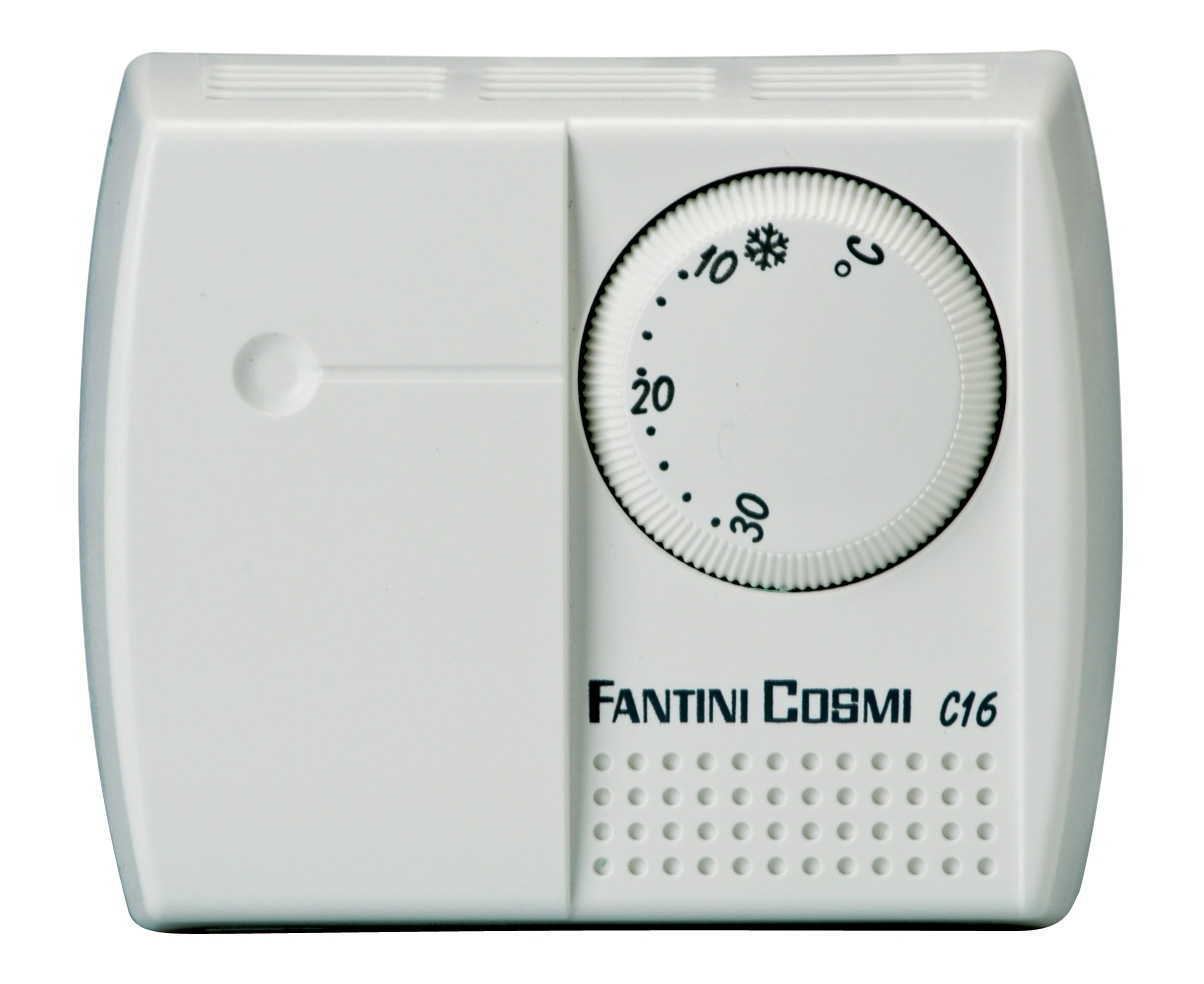

Fantini Cosmi Ambient thermostat with vapor tension C16I

Fantini Cosmi Ambient thermostat vapor tension C16I

SKU 3G-CBM-03667

Also listed as: FAN 50006 · FAN-50006

Brand

Fantini Cosmi

Item

Ambient thermostat with vapor tension C16I

Local availability & support — Singapore

Local office: 20 Woodlands Link #09-05, Singapore 738733
Phone: +65 8878 8355
Delivery: Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment: Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to: Singapore

Technical Specifications

Fantini Cosmi

connection type

two pole cable

erp classification

ErP Class I; 1%

Datasheet Content

Therm C16
                                                    FAN50002 à 12
TERMOSTATO AMBIENTE
UK     Room Thermostat                          EL     Θερμοστατης χωρου
ES     Termostato Ambiente                      PL     Termostat pokojowy
FR     Thermostat D’ambiance                    CZ     Prostorovy termostat
DE     Raumthermostat                           HV     Szoba termosztat
RU     Комнатный термостат                      TR     Oda termostati
RO     Termostat de cameră

Collegamento all’impianto con 2 fili
UK     User connection through two pole cable only                       EL
ES     Conexion a la instalacion con 2 hilos                             PL   Polaczenie elektryczne dwuprzewodowe
FR     Raccordement avec 2 fils                                          CZ   Elektricke pripojeni pomoci 2 vodicu
DE     Nur 2-leiter anschluss                                            HV   2 Pontos elektromos csatlakozas
RU     Подключение к системе с 2-мя проводами                            TR   Yky telle sadlanan elektronyk badlantisi
RO     Legatura cu doua fire




C16                   C16L                          C16EH                C16EHL              C16I                 C16IL

Blocco e limitazione della scala
UK     Limitation range
ES     Bloqueo o limitacion de la escala
FR     LimitaƟon echelle
DE     Temperatur bereich begrenzer
RU     Ограничение шкалы
RO     Bloc sau limitare a scalei
EL
PL     Ograniczony zakres temperatury
CZ     Limitovana rada
HV     H merseklet hatarok
TR     Sicaklik derecesy sinirlama alani

         I T45
         IP20
         10 ÷ 30°C
         Δt 0,8K (4K/h)
          V~ 250
         A 10 (2,5)


Classificazione ErP: ErP Class I; 1% (Reg. EU 811/2013 - 813/2013)
ErP classification: ErP Class I; 1% (EU Reg. 811/2013 - 813/2013)
Clasificación ErP: Clase ErP I; 1% (Reg. UE 811/2013 - 813/2013)
ClassificaƟon ErP: Classe ErP I; 1% (Rég. UE 811/2013 - 813/2013)
ErP Klassifi kation: ErP Klasse I; 1% (EU Verord. 811/2013 - 813/2013)



                                                                                                                  2015/05 5679736A

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Fantini Cosmi Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Fantini Cosmi Ambient thermostat vapor tension C16I

Frequently Asked Questions

What is the Fantini Cosmi C16I ambient thermostat used for?

The Fantini Cosmi C16I is a room thermostat that controls heating systems by sensing ambient temperature. It is suitable for residential or light commercial applications where a simple on/off temperature control is needed, using a vapor tension sensing element.

What are the specifications of the Fantini Cosmi C16I thermostat?

The C16I has a two-pole cable connection, a temperature range of 10 to 30 °C, a differential of 0.8 K at 4 K/h, and a switching capacity of 10 A at 250 V~. It is ErP Class I with 1% energy contribution and has an IP20 protection rating.

Where to buy the Fantini Cosmi C16I thermostat in Singapore?

3G Electric supplies the Fantini Cosmi C16I ambient thermostat to customers in Singapore. We source and deliver this model, handling logistics and customs clearance so you receive it ready for installation. Contact us for current lead times and pricing.

How to install the Fantini Cosmi C16I thermostat?

Installation must be performed by a qualified electrician. Connect the thermostat to the heating system using a two-pole cable only, as specified by Fantini Cosmi. Mount it on an interior wall away from drafts and direct heat sources, and set the desired temperature within the 10–30 °C range.

Used in

Common applications for Fantini Cosmi

Oil-fired boiler burner control — Fantini Cosmi ambient thermostat C16I and pressure switch B12HNY for fuel-pump lockout and room-temperature feedback.

Pneumatic compressor load management — B12DN or B13CN pressure switch for unload-valve control and tank cutout in 5–150 bar air systems.

Hydronic heating-plant commissioning — B12GNY and B12CRNY switches for pump-discharge and low-pressure monitoring in chilled-water and hot-water loops.

Industrial steam and hot-water vessel safety — B12HNY high-pressure switch and A96D/A95B level regulators for water-level and overpressure interlocks.

Thermal-storage tank management — A95B and A96D liquid-level regulators with 15-meter cable reach for boiler-makeup and expansion-tank applications.

Portable pump and pressure-test equipment — B12DN with adjustable differential for mobile hydraulic-circuit monitoring and component proof-pressure validation.
