Fantini CosmiSwitches & Thermostats

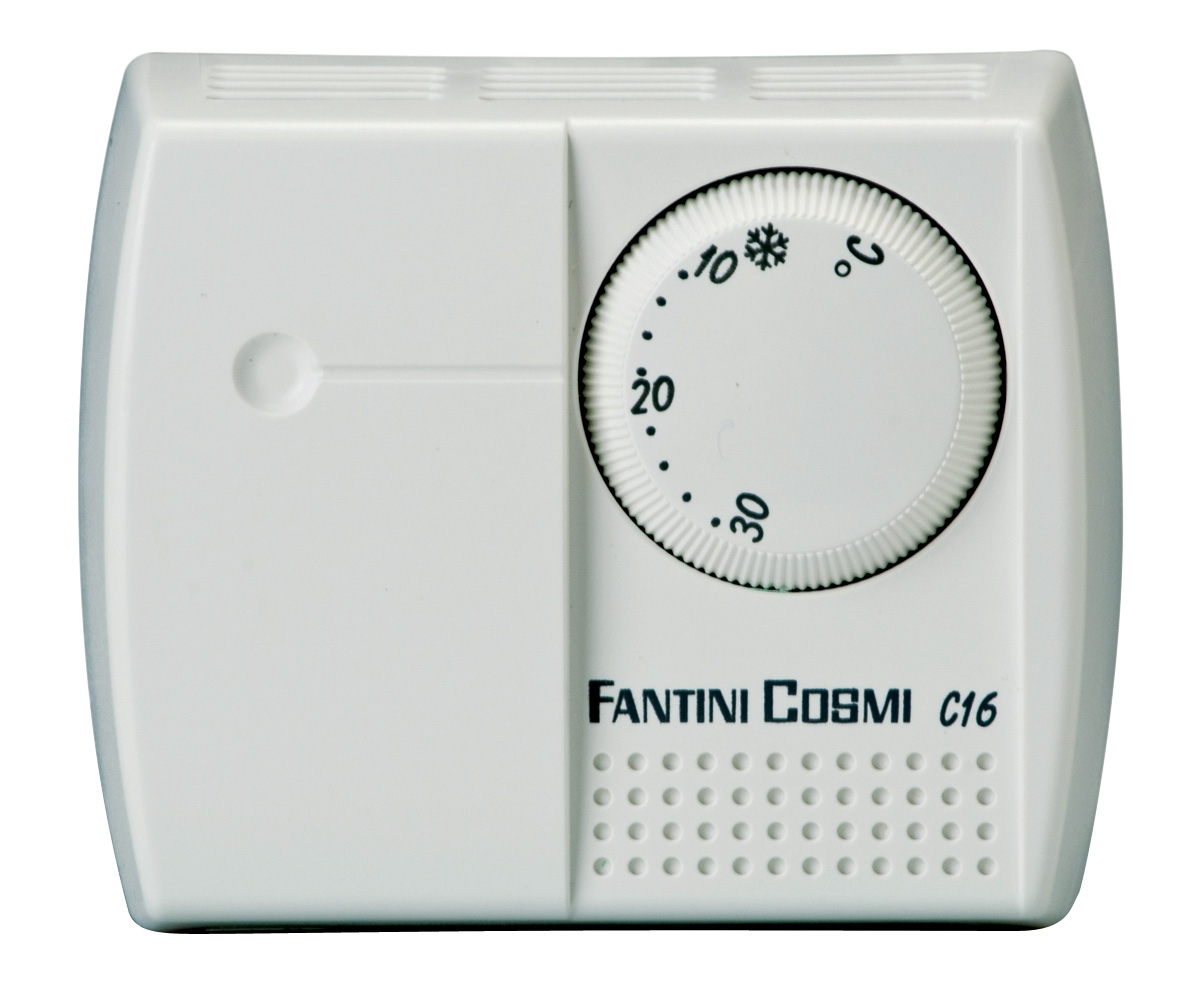

Fantini Cosmi Room thermostat with vapor tension C16IL

Fantini Cosmi C16IL is a room thermostat employing vapor tension control technology for HVAC systems. It features two-pole cable connection and ErP Class I efficiency rating at 1%, suitable for residential and light…

SKU 3G-CBM-03668

Also listed as: FAN 50008 · FAN-50008

Brand

Fantini Cosmi

Item

Room thermostat with vapor tension C16IL

Local availability & support — Singapore

Local office: 20 Woodlands Link #09-05, Singapore 738733
Phone: +65 8878 8355
Delivery: Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment: Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to: Singapore

Technical Specifications

Fantini Cosmi

type

room thermostat

model

C16IL

connection

two-pole cable

control method

vapor tension

erp efficiency

1%

erp classification

ErP Class I

Datasheet Content

Therm C16
                                                    FAN50002 à 12
TERMOSTATO AMBIENTE
UK     Room Thermostat                          EL     Θερμοστατης χωρου
ES     Termostato Ambiente                      PL     Termostat pokojowy
FR     Thermostat D’ambiance                    CZ     Prostorovy termostat
DE     Raumthermostat                           HV     Szoba termosztat
RU     Комнатный термостат                      TR     Oda termostati
RO     Termostat de cameră

Collegamento all’impianto con 2 fili
UK     User connection through two pole cable only                       EL
ES     Conexion a la instalacion con 2 hilos                             PL   Polaczenie elektryczne dwuprzewodowe
FR     Raccordement avec 2 fils                                          CZ   Elektricke pripojeni pomoci 2 vodicu
DE     Nur 2-leiter anschluss                                            HV   2 Pontos elektromos csatlakozas
RU     Подключение к системе с 2-мя проводами                            TR   Yky telle sadlanan elektronyk badlantisi
RO     Legatura cu doua fire




C16                   C16L                          C16EH                C16EHL              C16I                 C16IL

Blocco e limitazione della scala
UK     Limitation range
ES     Bloqueo o limitacion de la escala
FR     LimitaƟon echelle
DE     Temperatur bereich begrenzer
RU     Ограничение шкалы
RO     Bloc sau limitare a scalei
EL
PL     Ograniczony zakres temperatury
CZ     Limitovana rada
HV     H merseklet hatarok
TR     Sicaklik derecesy sinirlama alani

         I T45
         IP20
         10 ÷ 30°C
         Δt 0,8K (4K/h)
          V~ 250
         A 10 (2,5)


Classificazione ErP: ErP Class I; 1% (Reg. EU 811/2013 - 813/2013)
ErP classification: ErP Class I; 1% (EU Reg. 811/2013 - 813/2013)
Clasificación ErP: Clase ErP I; 1% (Reg. UE 811/2013 - 813/2013)
ClassificaƟon ErP: Classe ErP I; 1% (Rég. UE 811/2013 - 813/2013)
ErP Klassifi kation: ErP Klasse I; 1% (EU Verord. 811/2013 - 813/2013)



                                                                                                                  2015/05 5679736A

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Fantini Cosmi Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

What is the Fantini Cosmi C16IL room thermostat used for?

The Fantini Cosmi C16IL is a room thermostat for HVAC systems, using vapor tension control technology. It is suitable for residential and light commercial climate control applications, providing temperature regulation via a two-pole cable connection.

What are the specifications of the Fantini Cosmi C16IL thermostat?

The Fantini Cosmi C16IL is a room thermostat with vapor tension control, two-pole cable connection, and ErP Class I efficiency rating at 1%. It has an IP20 rating, temperature range of 10 to 30 °C, switching differential of 0.8 K at 4 K/h, and rated for 250 V~, 10 (2.5) A.

Where to buy the Fantini Cosmi C16IL in Singapore?

You can source the Fantini Cosmi C16IL room thermostat through 3G Electric in Singapore. We handle logistics, customs clearance, and delivery to your location, ensuring a smooth procurement process for this HVAC component.

How to install the Fantini Cosmi C16IL thermostat?

Install the Fantini Cosmi C16IL using a two-pole cable connection only, as specified by the manufacturer. Mount it in a location away from drafts and direct heat sources. The scale can be limited or blocked for temperature range control, following standard HVAC thermostat installation practices.

Used in

Common applications for Fantini Cosmi

Oil-fired boiler burner control — Fantini Cosmi ambient thermostat C16I and pressure switch B12HNY for fuel-pump lockout and room-temperature feedback.

Pneumatic compressor load management — B12DN or B13CN pressure switch for unload-valve control and tank cutout in 5–150 bar air systems.

Hydronic heating-plant commissioning — B12GNY and B12CRNY switches for pump-discharge and low-pressure monitoring in chilled-water and hot-water loops.

Industrial steam and hot-water vessel safety — B12HNY high-pressure switch and A96D/A95B level regulators for water-level and overpressure interlocks.

Thermal-storage tank management — A95B and A96D liquid-level regulators with 15-meter cable reach for boiler-makeup and expansion-tank applications.

Portable pump and pressure-test equipment — B12DN with adjustable differential for mobile hydraulic-circuit monitoring and component proof-pressure validation.
