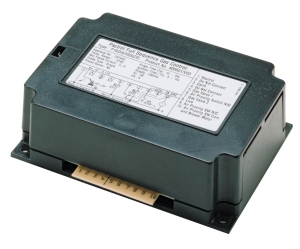

Pactrol Box P 16 B/AFL 402701/V02
Pactrol Box P 16 B is an industrial ignition control system delivering 12 kV output energy at 10 MJ for burner applications. Operating at 230V ±10% input with 50 Hz frequency, it achieves flame detection in 100 ms…
SKU 3G-CBM-04692
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
Pactrol Box P 16 B is an industrial ignition control system delivering 12 kV output energy at 10 MJ for burner applications. Operating at 230V ±10% input with 50 Hz frequency, it achieves flame detection in 100 ms and flame loss detection in 75 ms, suitable for combustion systems requiring rapid response.
Frequently Asked Questions
What is the Pactrol Box P 16 B/AFL 402701/V02 used for?
The Pactrol Box P 16 B/AFL 402701/V02 is an industrial ignition control system used in combustion applications such as combination boilers, condensing boilers, water heaters, and radiant tube heaters. It provides full sequence control with integral spark ignition and flame detection, suitable for atmospheric or forced draught appliances.
What are the specifications of the Pactrol Box P 16 B/AFL 402701/V02?
The Pactrol Box P 16 B/AFL 402701/V02 operates at 230V ±10% input, 50 Hz frequency, with 5 VA power consumption. It delivers 12 kV output voltage at 10 MJ energy, with flame appearance time of 100 ms and flame disappearance time of 75 ms. The electrode gap is 2.5-4 mm, and maximum HV cable length is 1 m.
Where to buy the Pactrol Box P 16 B/AFL 402701/V02 in Singapore?
3G Electric supplies the Pactrol Box P 16 B/AFL 402701/V02 to customers in Singapore. We handle logistics, customs clearance, and delivery to your facility. Contact our team for pricing and lead time on this industrial ignition control system.
How to install the Pactrol Box P 16 B/AFL 402701/V02?
Install the Pactrol Box P 16 B/AFL 402701/V02 by mounting it securely and connecting the 230V supply via the screw-based connector. Ensure the electrode gap is set between 2.5-4 mm and the HV cable does not exceed 1 m. Follow the manufacturer's wiring diagram for single or dual electrode operation.
