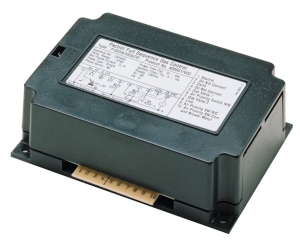

Pactrol Box P 16 FI V05 406203 V05 (CE)

Pactrol Box P 16 FI V05 is a flame-detection control unit for industrial burner systems, delivering 12 kV output voltage with 230V ±10% supply input. Features 50 Hz frequency operation, 2.5mm–4mm electrode gap, and…

SKU 3G-CBM-04699

Also listed as: PAC 40077 · PAC-40077

Brand

Pactrol

Item

Box P 16 FI V05 406203 V05

Technical Specifications

Pactrol

frequency

50 Hz

max humidity

95 %

electrode gap

2.5mm à4mm

internal fuse

1A

output energy

10MJ

impedance 50hz

4MQ

output voltage

12 kV

supply voltage

230V +/-10%

flame appearance

100ms

electrode voltage

180V

power consumption

5V A

flame disappearance

75ms

max ht cable length

1m

short circuit current

50 µA

View Full Spec Sheet

Technical Documents

(2)

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Pactrol Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Used in

Common applications for Pactrol

Industrial gas burners 10–60 kW — Pactrol Box P 16 FI and Control Box P 16 DIS spark-ignition controllers with 12 kV output and EN 298 approval

Atmospheric heating boilers — CSS01 12SJ control housing with integrated time and flame relays for safe ignition sequencing and flame detection

Forced-air burner retrofits — Pactrol connector assemblies (Molex, 10-terminal, P25) for panel rewiring and fuel-valve interface upgrades

Microgas fuel-valve integration — P25 connectors with resistors (e.g., GV2 96121) for seamless connection to Microgas proportional and solenoid valves

OEM control-panel assembly — Pactrol ignition modules and connectors for custom burner-control panels in packaged heating and combustion equipment

Plant-floor equipment replacement — Spare connectors and control housings stocked in Singapore for same-day delivery to maintenance teams across Southeast Asia
