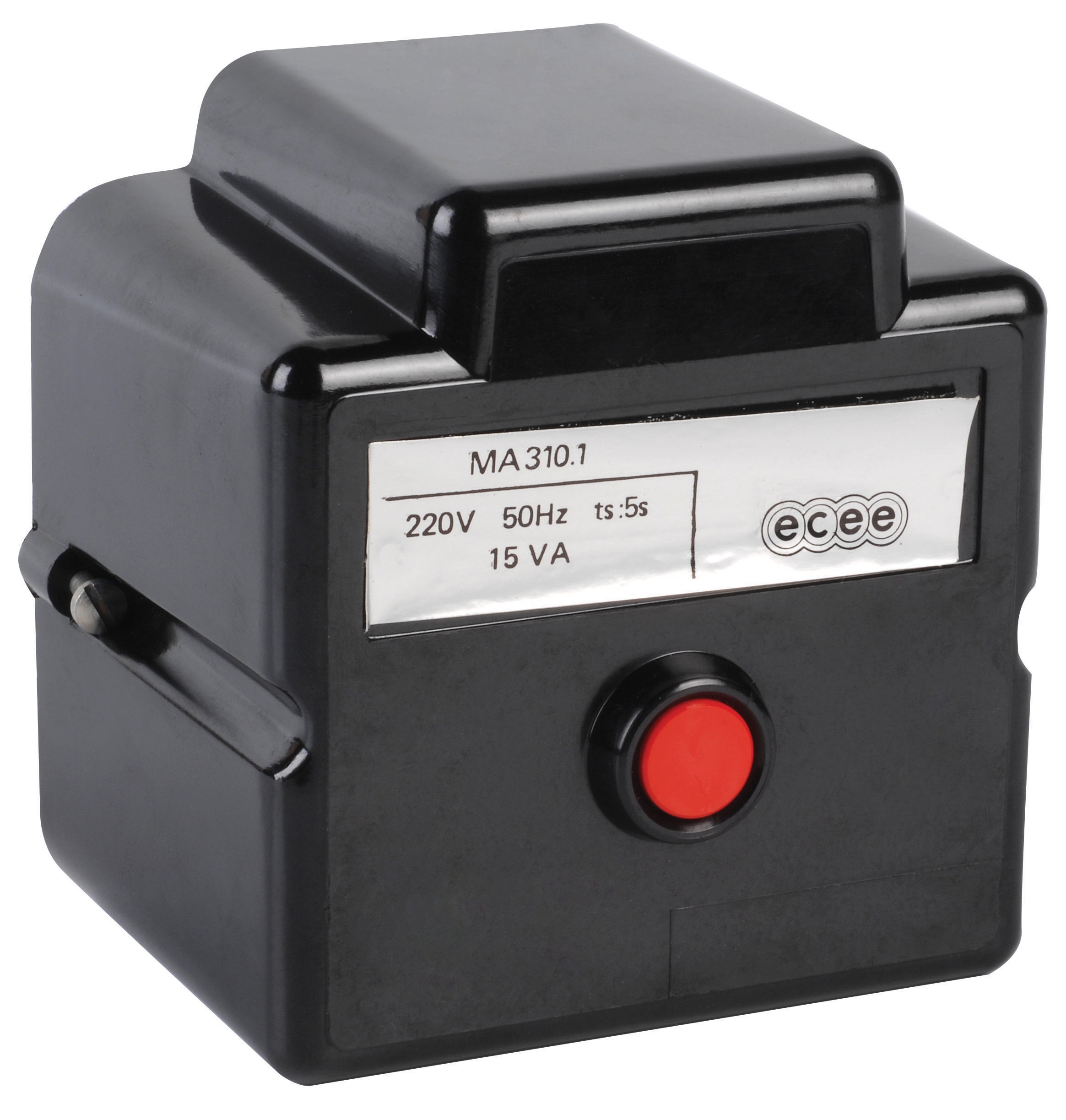

Pactrol Relay MA 310

Pactrol Relay MA 310 is a burner control module for oil burner systems, rated 220V or 380V with a 400 VA solenoid valve and 1100 VA ignition transformer. It operates at minimum burner flow of 30 kg/h and handles…

SKU 3G-CBM-05933

Also listed as: REL 30102 · REL-30102

Brand

Pactrol

Item

Relay MA 310

Local availability & support — Singapore

Local office: 20 Woodlands Link #09-05, Singapore 738733
Phone: +65 8878 8355
Delivery: Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment: Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to: Singapore

Technical Specifications

Pactrol

voltage

220V or 380V

burner type

oil burner

solenoid valve

400 VA

min burner flow

30 kg/h

ignition transformer

1100 VA

min cell illumination

30 lux

max ambient temperature

110°C

startup safety time low

10 sec

startup safety time high

5 sec

Datasheet Content

ÉQUIPEMENT            MA 310 .1
    NOTICE                                                                                                     MA 1310
         D'INSTRUCTIONS                                                                           NOTICE NTC 2lijl


         RENSEIGNEMENTS TECHNIQUES
                      Equipement.2 allures pour brûleurs à mazout de débit supérieur à 30 kg/�
                       Type MA 310-1    boite. seule - le discontacteur est _livré séparéme'nt
                       Type MA 1310     ensemble sous coffret tôle composé de la boite MA 310.,.1
                                        et d'un discontacteur X12
    Utilisation en courant triphasé                           Temporisations compensées contre les variations
                                                 }
                                                     + jO %
      220 V ou 380 V avec neutre                     - 15 %     de température
    Fréquence                                        50 Hz      Préventilation et préallumage simultanés    JO seco
    Puissance nominale                                             Post a11 umage                                       20 sec o
       - du moteur avec discontacteur X12 J 220 V - 3 kW           lntervalle de temps entre démarrage
                                          { 380 V - 5,5 kW
                                                                      1ère allure et 2ème allure                        20 sec o
       - du transformateur d'allumage            1+00 VA
       -·de l 0 électro-vanne                     400 VA      Sécurité au démarrage
    Eclairement minimum de la cellule            30 lux            - pour brûleur supérieur à 30 kg/h                    5 sec o
    Signalisation tension réseau                  2 A              - pour brûleur inférieur� 30 kg/h                    10 sec.
    Température ambiante maximum permise                      Sur extinction de flamme pendant la marche
          p�ur l équipement
                  0
                                                 iio· c       arrêt immédiat du brûleur.
          pour la cellule                        10·   C      Une seule tentative de redémarrage a�rès un temps
    Consomrnati0� en marche normale              15 VA        d 0 attente de 30 secondes c
    Porte cellule·type                         8205




         DIAGRAMME DE FONCTIONNEMENT


    A    Dé'marrage normal avec allumage                       B        Extinction de flamme avec réallumage

           Régulateur                                                     Régulateur
           Allumage                                                       Allumage
           Moteur Ventil.                                                 Moteur Ventil.
           EV 1' allure                                                   EV 1' allure
           EV 2' allure                                                   EV 2 .. allure
           Flamme                                                         Flamme
           Sécurité                                                       Sécurité
                              w        N                                                           w           N
                                   z       B                                                 B.        z           B_
    C    Démarrage sans allumage                               D        Extinction de flamme sans réallumage


             Régulateur                                                    Régulateur
             Allumage                                                      Allumage
             Moteur Ventil.                                                Moteur Venti'i.
             EV 1' allure                                                  EV 1' allure
             EV 2' allure                                                  EV 2' allure
             Flamme                                                        Flamme
           · Sécurité                                                      Sécurité
                              w s                                                            e· w          s
     W   Préventilation et Préallumage                              B     Marche normale
     N   Durée de Postallumage                                      S     Ten,ps de sécurité
     Z   Temps d'allumage




� Études et Constructions - Électronique et Électromécanique
� Département Régulation
