PactrolBurner Controls

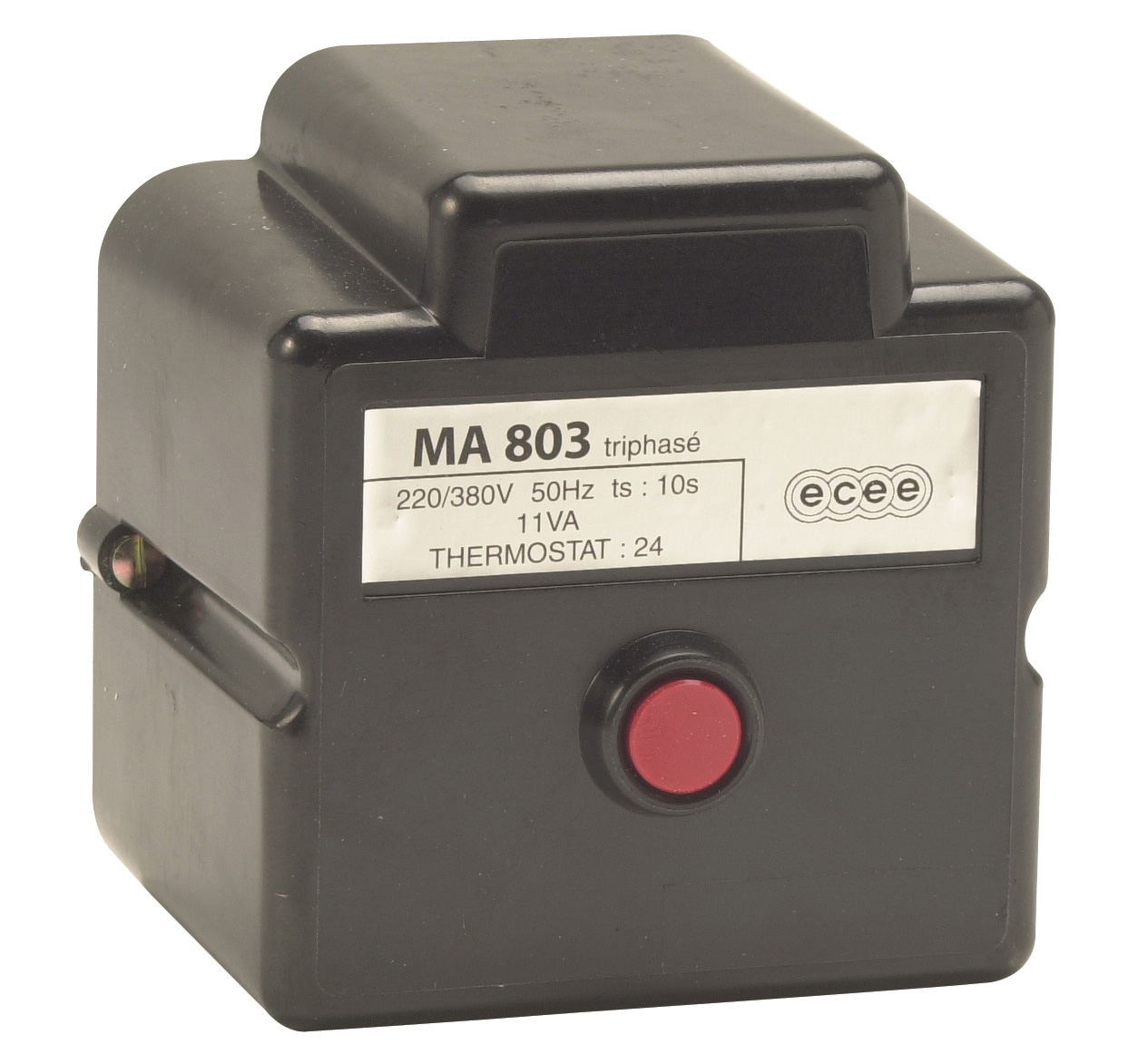

Pactrol Relay MA 803

SKU 3G-CBM-05935

Also listed as: REL 30110 · REL-30110

Brand

Pactrol

Item

Relay MA 803

Technical Specifications

Pactrol

frequency

50 Hz

motor power monophase

0.25 kW

motor power triphasé

0.78 kW

control circuit voltage

24 V

maximum burner flow rate

40 kg/h

supply voltage monophase

220 V

supply voltage triphasé

380 V

control circuit frequency

50 Hz

minimum cell illumination

30 lux

ignition transformer power

400 VA

maximum ambient temperature

40 °C

normal operation consumption

11 VA

security delay burner flow 30kgh

10 sec

security delay burner flow 40kgh

20 sec

View Full Spec Sheet

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Pactrol Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Pactrol Relay MA 803 is a burner control unit designed for industrial combustion applications up to 40 kg/h maximum burner flow rate. Operating on 24 V control circuit at 50 Hz, the unit supports both single-phase (220 V, 0.25 kW motor) and three-phase (380 V, 0.78 kW motor) supply configurations, with an ignition transformer rated 400 VA. Security delay timing is 10 seconds at 30 kg/h flow and 20 seconds at 40 kg/h flow, with minimum cell illumination set at 30 lux and maximum ambient temperature rating of 40 °C. 3G Electric supplies this control relay for Southeast Asia distribution with full DDP handling.
