CHAINFLEX Control Cable: 16 AWG, 7 Conductors, 25 ft, PUR Jacket - Continuous Flexing Control Cables
CHAINFLEXContinuous Flexing Control Cables

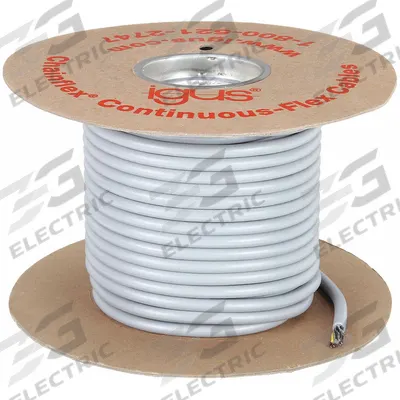

CHAINFLEX Control Cable: 16 AWG, 7 Conductors, 25 ft, PUR Jacket

The CHAINFLEX Control Cable (SKU 24C004, MPN CF77-UL-15-07-25) is a continuous flexing control cable from the Chainflex CF77-UL series. This 16 AWG, 7-conductor cable features a PUR jacket, a 1,000 V rating, copper…

SKU 3G-OTH-53300

Brand
CHAINFLEX
Item
Control Cable: 16 AWG, 7 Conductors, 25 ft, PUR Jacket
Category
Continuous Flexing Control Cables
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

CHAINFLEX
Manufacturer Part Number
CF77-UL-15-07-25
Series
Chainflex
Standards
CE
Cable Series
CF77-UL
Product Type
Control Cable
Includes Ground
Yes
Conductor Material
Copper
Conductor Color Code
Black with White Numbers
Resistance Properties
Notch Resistance
Conductor Configuration
Single
Minimum Bend Radius Factor - Fixed
4 x OD
Minimum Bend Radius Factor - E-Chain
6.8 x OD
Minimum Bend Radius Factor - Flexible
5 x OD
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

CHAINFLEX Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The CHAINFLEX Control Cable (SKU 24C004, MPN CF77-UL-15-07-25) is a continuous flexing control cable from the Chainflex CF77-UL series. This 16 AWG, 7-conductor cable features a PUR jacket, a 1,000 V rating, copper conductors, and includes a ground. It offers notch resistance and meets CE standards, with minimum bend radius factors of 4 x OD for fixed, 5 x OD for flexible, and 6.8 x OD for e-chain applications.

Frequently Asked Questions

What is the CHAINFLEX CF77-UL control cable used for?

The CHAINFLEX CF77-UL control cable is designed for continuous flexing applications in automated machinery, robotics, and cable carriers (e-chains). Its PUR jacket and notch resistance make it suitable for harsh industrial environments requiring reliable signal or low-voltage power transmission.

What are the specifications of the CHAINFLEX CF77-UL-15-07-25 cable?

This cable is 16 AWG with 7 copper conductors, a PUR jacket, and a 1,000 V rating. It includes a ground conductor and meets CE standards. Minimum bend radius factors are 4 x OD for fixed, 5 x OD for flexible, and 6.8 x OD for e-chain applications. It offers notch resistance.

Where to buy CHAINFLEX CF77-UL control cables worldwide?

3G Electric supplies CHAINFLEX CF77-UL control cables worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your site. Contact us for availability and lead times on this and other Chainflex cable series.

How to select the right CHAINFLEX control cable for an e-chain application?

Select a cable based on conductor count, AWG, voltage rating, and bend radius. For e-chain use, ensure the minimum bend radius factor (e.g., 6.8 x OD for this model) matches your carrier's specifications. Verify jacket material (PUR for abrasion resistance) and standards like CE for compliance.

Used in

Common applications for CHAINFLEX
Automated assembly lines — Chainflex CF10 control cables for signal transmission in cable carriers
Robotic arms — Chainflex CF280ULH servo motor cables for power and feedback in high-flex joints
Material handling conveyors — Chainflex CF78-UL control cables with PUR jacket for oil resistance
CNC machining centers — Chainflex CF9-UL control cables rated at 1,000 V for spindle and axis control
Packaging machinery — Chainflex CFBUS-PVC-021 bus cables for CAN-Bus communication in continuous motion
Automotive manufacturing — Chainflex CF2 control cables with UV-resistant PUR jacket for outdoor gantry systems
