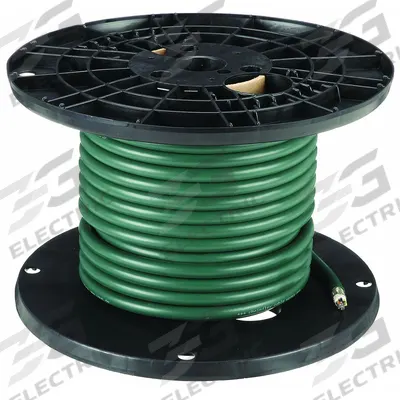

CHAINFLEX Control Cable: 18 AWG, 12 Conductors, 25 ft, PVC Jacket - Continuous Flexing Control Cables
CHAINFLEXContinuous Flexing Control Cables

CHAINFLEX Control Cable: 18 AWG, 12 Conductors, 25 ft, PVC Jacket

The CHAINFLEX Control Cable (SKU 2TZP2) is a continuous flexing control cable from the Chainflex CF6 series, featuring 18 AWG, 12 conductors, a PVC jacket, and a 600 V rating. It includes a ground conductor, uses…

SKU 3G-OTH-47985

Brand
CHAINFLEX
Item
Control Cable: 18 AWG, 12 Conductors, 25 ft, PVC Jacket
Category
Continuous Flexing Control Cables
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

CHAINFLEX
Manufacturer Part Number
CF6-07-12-25
Series
Chainflex
Standards
cRUus
Cable Series
CF6
Product Type
Control Cable
Includes Ground
Yes
Conductor Material
Copper
Conductor Color Code
Black with White Numbers
Resistance Properties
Heat Resistant
Conductor Configuration
Single
Minimum Bend Radius Factor - Fixed
4 x OD
Minimum Bend Radius Factor - E-Chain
6.8 x OD
Minimum Bend Radius Factor - Flexible
5 x OD
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

CHAINFLEX Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The CHAINFLEX Control Cable (SKU 2TZP2) is a continuous flexing control cable from the Chainflex CF6 series, featuring 18 AWG, 12 conductors, a PVC jacket, and a 600 V rating. It includes a ground conductor, uses single copper conductors with black/white numbered insulation, and is heat resistant. The cable meets cRUus standards and has minimum bend radius factors of 4 x OD for fixed installation, 5 x OD for flexible use, and 6.8 x OD for e-chain applications.

Frequently Asked Questions

What is CHAINFLEX Control Cable used for?

CHAINFLEX Control Cable is used for continuous flexing applications in industrial automation, robotics, and cable carriers (e-chain). It transmits control signals and power to moving machinery, with a PVC jacket and 600 V rating for reliable performance in dynamic environments.

What are the specifications of CHAINFLEX Control Cable CF6-07-12-25?

This CHAINFLEX cable has 18 AWG, 12 conductors, single copper wires with black/white numbered insulation, a PVC jacket, and 600 V rating. It includes a ground conductor, is heat resistant, and meets cRUus standards. Minimum bend radius factors: 4 x OD fixed, 5 x OD flexible, 6.8 x OD for e-chain.

Where to buy CHAINFLEX Control Cable in worldwide?

3G Electric supplies CHAINFLEX Control Cable worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your site. Contact us to order the CF6-07-12-25 cable with confidence.

How to select the right CHAINFLEX cable for e-chain applications?

Select CHAINFLEX cable based on conductor count, AWG, voltage rating, and bend radius. For e-chain use, ensure the minimum bend radius factor (6.8 x OD for this CF6 cable) matches your carrier design. Verify temperature range and flex cycles per the manufacturer's data sheet for your specific motion profile.

Used in

Common applications for CHAINFLEX
Automated assembly lines — Chainflex CF10 control cables for signal transmission in cable carriers
Robotic arms — Chainflex CF280ULH servo motor cables for power and feedback in high-flex joints
Material handling conveyors — Chainflex CF78-UL control cables with PUR jacket for oil resistance
CNC machining centers — Chainflex CF9-UL control cables rated at 1,000 V for spindle and axis control
Packaging machinery — Chainflex CFBUS-PVC-021 bus cables for CAN-Bus communication in continuous motion
Automotive manufacturing — Chainflex CF2 control cables with UV-resistant PUR jacket for outdoor gantry systems

CHAINFLEX Products

3G Electric supplies CHAINFLEX continuous flexing control cables. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
