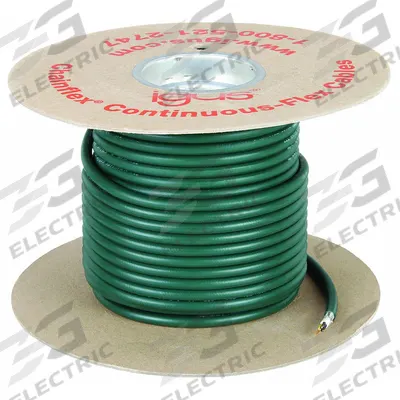

CHAINFLEX Control Cable: 14 AWG, 4 Conductors, 100 ft, PVC Jacket - Continuous Flexing Control Cables
CHAINFLEXContinuous Flexing Control Cables

CHAINFLEX Control Cable: 14 AWG, 4 Conductors, 100 ft, PVC Jacket

The CHAINFLEX CF6-25-04-100 is a continuous flexing control cable from the Chainflex series, featuring 14 AWG, 4 conductors, a PVC jacket, and a 600 V rating. It includes a ground conductor, uses copper single…

SKU 3G-OTH-53617

Brand
CHAINFLEX
Item
Control Cable: 14 AWG, 4 Conductors, 100 ft, PVC Jacket
Category
Continuous Flexing Control Cables
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

CHAINFLEX
Manufacturer Part Number
CF6-25-04-100
Series
Chainflex
Standards
cRUus
Cable Series
CF6
Product Type
Control Cable
Includes Ground
Yes
Conductor Material
Copper
Conductor Color Code
Black with White Numbers
Resistance Properties
Heat Resistant
Conductor Configuration
Single
Minimum Bend Radius Factor - Fixed
4 x OD
Minimum Bend Radius Factor - E-Chain
6.8 x OD
Minimum Bend Radius Factor - Flexible
5 x OD
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

CHAINFLEX Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The CHAINFLEX CF6-25-04-100 is a continuous flexing control cable from the Chainflex series, featuring 14 AWG, 4 conductors, a PVC jacket, and a 600 V rating. It includes a ground conductor, uses copper single conductors with black/white numbering, and is heat resistant. The cable meets cRUus standards and has minimum bend radius factors of 4 x OD for fixed, 5 x OD for flexible, and 6.8 x OD for e-chain applications.

Frequently Asked Questions

What is the CHAINFLEX CF6-25-04-100 control cable used for?

The CHAINFLEX CF6-25-04-100 is a continuous flexing control cable designed for automated machinery, robotics, and cable carrier (e-chain) applications. Its 14 AWG, 4-conductor construction with a PVC jacket and 600 V rating suits high-flex environments where reliable signal or power transmission is needed.

What are the specifications of the CHAINFLEX CF6-25-04-100?

This cable has 14 AWG, 4 copper single conductors with black/white numbering, includes a ground conductor, and is rated 600 V. It is heat resistant, meets cRUus standards, and has minimum bend radius factors of 4 x OD (fixed), 5 x OD (flexible), and 6.8 x OD (e-chain). The PVC jacket supports continuous flexing.

Where to buy the CHAINFLEX CF6-25-04-100 worldwide?

3G Electric supplies the CHAINFLEX CF6-25-04-100 worldwide. As a global industrial equipment distributor since 1990, we handle full logistics, customs clearance, and delivery to your site. Contact us for availability and lead time; we source and deliver this cable to any international destination.

How to select the right CHAINFLEX continuous flex cable?

Select based on conductor count, AWG size, voltage rating, and bend radius requirements for your e-chain or flex application. The CF6-25-04-100 offers 14 AWG, 4 conductors, 600 V, and a minimum bend radius of 6.8 x OD for e-chain use. Always verify cable OD and compare with your carrier's minimum bend specifications.
