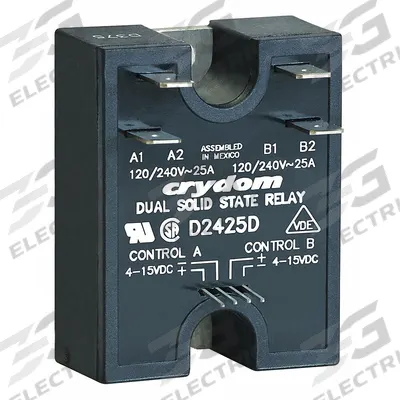

CRYDOM Dual Solid State Relay: Surface Mounted, 25 A Max Output Current, SCR
The CRYDOM Dual Solid State Relay (MPN D2425D) is a panel-mounted, AC-output relay with a Form A switch configuration. It features a screw-clamp electrical connection, an input current of 12 mA, and an output voltage…
SKU 3G-OTH-37628
Need installation or engineering help?
Ask a question
Product Description
The CRYDOM Dual Solid State Relay (MPN D2425D) is a panel-mounted, AC-output relay with a Form A switch configuration. It features a screw-clamp electrical connection, an input current of 12 mA, and an output voltage range of 24 to 280V AC. The maximum output current without a heat sink is 16 A.
Frequently Asked Questions
What is the CRYDOM D2425D dual solid state relay used for?
The CRYDOM D2425D dual solid state relay is used for switching AC loads in industrial automation, HVAC, and process control systems. It provides reliable, noiseless switching for resistive and inductive loads up to 25 A with proper heat sinking, making it suitable for panel-mounted applications requiring long life and fast response.
What are the specifications of the CRYDOM D2425D relay?
The CRYDOM D2425D is a panel-mounted, AC-output dual solid state relay with a Form A switch configuration. It has an input current of 12 mA, output voltage range of 24 to 280V AC, and maximum output current without heat sink of 16 A. Electrical connection is via screw clamp, and it is not finger-safe.
Where to buy the CRYDOM D2425D relay worldwide?
You can source the CRYDOM D2425D relay worldwide through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time; we supply genuine CRYDOM components for industrial applications.
How to select the right heat sink for the CRYDOM D2425D relay?
To select a heat sink for the CRYDOM D2425D, calculate the thermal load based on your load current and ambient temperature. The relay's maximum output current without heat sink is 16 A; for currents above that, use a properly sized heat sink to maintain junction temperature within limits. Consult CRYDOM's thermal derating curves for guidance.
