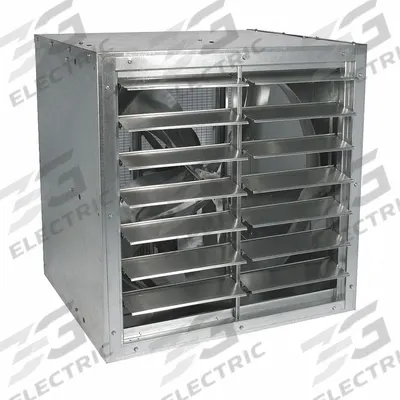

Dayton Cabinet Exhaust Fan: Belt Drive, 24 in Blade, 3/4 hp, Totally Enclosed Air Over - Cabinet Exhaust Fans
DaytonCabinet Exhaust Fans

Dayton Cabinet Exhaust Fan: Belt Drive, 24 in Blade, 3/4 hp, Totally Enclosed Air Over

The DAYTON Cabinet Exhaust Fan (MPN 1AHB7) is a belt-drive cabinet exhaust fan with a 24-inch blade and a 3/4 hp Totally Enclosed Air Over motor. It operates at 5,796 cfm and is rated for 208-230/460V AC. The unit…

SKU 3G-OTH-81262

Brand
Dayton
Item
Cabinet Exhaust Fan: Belt Drive, 24 in Blade, 3/4 hp, Totally Enclosed Air Over
Category
Cabinet Exhaust Fans
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
1AHB7
Type
3/4 hp, Totally Enclosed Air Over, 5,796 cfm
Blade
24 in
Assembly
Ships Fully Assembled
Nameplate Voltage
208-230/460V AC
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Cabinet Exhaust Fan (MPN 1AHB7) is a belt-drive cabinet exhaust fan with a 24-inch blade and a 3/4 hp Totally Enclosed Air Over motor. It operates at 5,796 cfm and is rated for 208-230/460V AC. The unit ships fully assembled.

Frequently Asked Questions

What is the DAYTON Cabinet Exhaust Fan 1AHB7 used for?

The DAYTON 1AHB7 is a belt-drive cabinet exhaust fan designed for industrial ventilation, removing heat, fumes, and stale air from manufacturing plants, warehouses, and commercial facilities. Its 5,796 cfm airflow and 24-inch blade handle high-volume air movement in large spaces.

What are the specifications of the DAYTON 1AHB7 exhaust fan?

The DAYTON 1AHB7 features a 24-inch blade, 3/4 hp Totally Enclosed Air Over motor, and delivers 5,796 cfm. It operates on 208-230/460V AC three-phase power and ships fully assembled. The belt-drive design allows for adjustable airflow and quieter operation compared to direct-drive fans.

Where to buy the DAYTON 1AHB7 cabinet exhaust fan worldwide?

3G Electric supplies the DAYTON 1AHB7 cabinet exhaust fan to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your site. Contact us for a quote and lead time on this belt-drive exhaust fan.

How to install the DAYTON 1AHB7 belt-drive exhaust fan?

The DAYTON 1AHB7 ships fully assembled, simplifying installation. Mount the fan cabinet securely to a wall or roof opening, connect the 208-230/460V AC power supply per local codes, and verify belt tension and alignment. Always follow the manufacturer's manual and use proper safety equipment.
