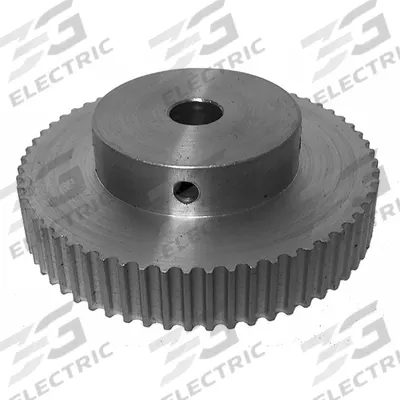

Dayton Timing Pulley: Curvilinear, Fixed, For 9 mm Belt Wd, 28 Teeth, 3 mm Pitch - HTD Section Fixed-Bore Timing Pulleys with Hub
DaytonHTD Section Fixed-Bore Timing Pulleys with Hub

Dayton Timing Pulley: Curvilinear, Fixed, For 9 mm Belt Wd, 28 Teeth, 3 mm Pitch

The DAYTON Timing Pulley is a curvilinear, HTD section fixed-bore timing pulley with hub, designed for the Powerhouse® belt series. It features a clear anodized finish, accommodates a 9 mm belt width, and has 28…

SKU 3G-OTH-116594

Brand
Dayton
Item
Timing Pulley: Curvilinear, Fixed, For 9 mm Belt Wd, 28 Teeth, 3 mm Pitch
Category
HTD Section Fixed-Bore Timing Pulleys with Hub
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
28-3M09-6A3
Type
Fixed, For 9 mm Belt Wd, Aluminum
Pitch
3 mm
Teeth
28
Finish
Clear Anodized
For Belt Series
Powerhouse®
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Timing Pulley is a curvilinear, HTD section fixed-bore timing pulley with hub, designed for the Powerhouse® belt series. It features a clear anodized finish, accommodates a 9 mm belt width, and has 28 teeth with a 3 mm pitch, constructed from aluminum (MPN 28-3M09-6A3).

Frequently Asked Questions

What is the DAYTON Timing Pulley 28-3M09-6A3 used for?

The DAYTON Timing Pulley is used in power transmission systems to synchronize motion with a Powerhouse® belt. It is ideal for industrial machinery, conveyors, and automation equipment requiring precise timing, low backlash, and reliable torque transfer in curvilinear HTD applications.

What are the specifications of the DAYTON Timing Pulley 28-3M09-6A3?

This DAYTON pulley has 28 teeth with a 3 mm pitch, fits a 9 mm belt width, and is made of aluminum with a clear anodized finish. It is a fixed-bore HTD section pulley with hub, part of the Powerhouse® belt series, and carries MPN 28-3M09-6A3.

Where to buy the DAYTON Timing Pulley 28-3M09-6A3 worldwide?

3G Electric supplies the DAYTON Timing Pulley 28-3M09-6A3 worldwide. As a global industrial distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time on this Powerhouse® series pulley.

How to select the correct DAYTON Timing Pulley for a Powerhouse® belt?

To select the correct DAYTON pulley, match the belt width (9 mm), pitch (3 mm), and tooth profile (HTD curvilinear). Ensure the fixed bore diameter fits your shaft. The clear anodized aluminum construction offers corrosion resistance. 3G Electric can help confirm compatibility for your application.
