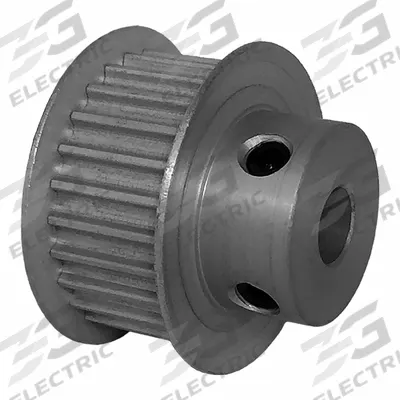

Dayton Timing Pulley: Curvilinear, Fixed, For 9 mm Belt Wd, 25 Teeth, 3 mm Pitch - HTD Section Fixed-Bore Timing Pulleys with Hub
DaytonHTD Section Fixed-Bore Timing Pulleys with Hub

Dayton Timing Pulley: Curvilinear, Fixed, For 9 mm Belt Wd, 25 Teeth, 3 mm Pitch

The DAYTON Timing Pulley is a curvilinear, HTD section fixed-bore timing pulley with hub, designed for use with Powerhouse® belt series. It features 25 teeth, a 3 mm pitch, and accommodates a 9 mm belt width…

SKU 3G-OTH-114788

Brand
Dayton
Item
Timing Pulley: Curvilinear, Fixed, For 9 mm Belt Wd, 25 Teeth, 3 mm Pitch
Category
HTD Section Fixed-Bore Timing Pulleys with Hub
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
25-3M09M6FA6
Type
Fixed, For 9 mm Belt Wd, Aluminum
Pitch
3 mm
Teeth
25
Finish
Clear Anodized
For Belt Series
Powerhouse®
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Timing Pulley is a curvilinear, HTD section fixed-bore timing pulley with hub, designed for use with Powerhouse® belt series. It features 25 teeth, a 3 mm pitch, and accommodates a 9 mm belt width, constructed from aluminum with a clear anodized finish.

Frequently Asked Questions

What is the DAYTON Timing Pulley 25-3M09M6FA6 used for?

The DAYTON Timing Pulley is used in power transmission systems to synchronize motion with a Powerhouse® belt. It is ideal for industrial machinery, conveyors, and automation equipment requiring precise timing, low backlash, and reliable torque transfer in a compact aluminum design.

What are the specifications of the DAYTON Timing Pulley 25-3M09M6FA6?

This DAYTON pulley has 25 teeth, a 3 mm pitch, and fits a 9 mm belt width. It is a fixed-bore HTD section pulley with hub, made of aluminum with a clear anodized finish. It is designed for the Powerhouse® belt series and has manufacturer part number 25-3M09M6FA6.

Where to buy the DAYTON Timing Pulley 25-3M09M6FA6 worldwide?

You can source the DAYTON Timing Pulley 25-3M09M6FA6 through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations, ensuring you receive the correct DAYTON component for your application.

How to select the correct DAYTON Timing Pulley for a Powerhouse® belt?

To select the correct DAYTON pulley, match the belt series (Powerhouse®), pitch (3 mm), belt width (9 mm), and tooth count (25). Ensure the bore size fits your shaft. The fixed-bore design with hub simplifies installation. Always verify the manufacturer part number 25-3M09M6FA6 for compatibility.
