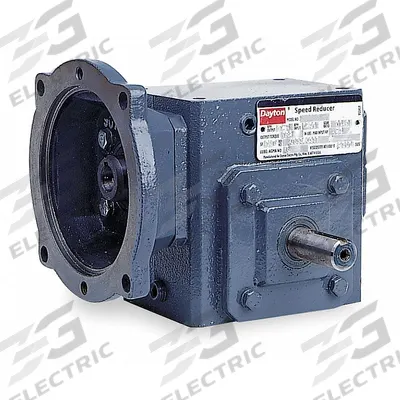

Dayton Speed Reducer: 40:1, 44 RPM, 0.25 hp Input Max, 220 in-lb Output Max, Keyed - Direct-Drive Right-Angle Speed Reducers
DaytonDirect-Drive Right-Angle Speed Reducers

Dayton Speed Reducer: 40:1, 44 RPM, 0.25 hp Input Max, 220 in-lb Output Max, Keyed

The DAYTON Speed Reducer (SKU 4Z002) is a direct-drive right-angle speed reducer with a 40:1 ratio, delivering 44 RPM output. It accepts a maximum input of 0.25 hp and provides up to 220 in-lb of output torque…

SKU 3G-OTH-139447

Brand
Dayton
Item
Speed Reducer: 40:1, 44 RPM, 0.25 hp Input Max, 220 in-lb Output Max, Keyed
Category
Direct-Drive Right-Angle Speed Reducers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
4Z002
Type
44 RPM, 220 in-lb Output Max, Keyed, 56C, 4Z002
Input Max
0.25 hp
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Speed Reducer (SKU 4Z002) is a direct-drive right-angle speed reducer with a 40:1 ratio, delivering 44 RPM output. It accepts a maximum input of 0.25 hp and provides up to 220 in-lb of output torque, featuring a keyed shaft and a 56C frame. This unit is designed for mounting in any position except with the input motor shaft facing upward.

Frequently Asked Questions

What is the DAYTON 4Z002 speed reducer used for?

The DAYTON 4Z002 is a direct-drive right-angle speed reducer used to reduce motor speed and increase torque in industrial machinery. It is suitable for conveyors, packaging equipment, and material handling systems where a 40:1 ratio and 220 in-lb output torque are required.

What are the specifications of the DAYTON 4Z002 speed reducer?

The DAYTON 4Z002 speed reducer has a 40:1 ratio, 44 RPM output, 0.25 hp maximum input, and 220 in-lb maximum output torque. It features a keyed shaft, 56C frame, and can be mounted in any position except with the input motor shaft facing upward.

Where to buy the DAYTON 4Z002 speed reducer worldwide?

3G Electric supplies the DAYTON 4Z002 speed reducer to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your location. Contact us for pricing and lead time on this direct-drive right-angle reducer.

How to install the DAYTON 4Z002 speed reducer?

Mount the DAYTON 4Z002 in any position except with the input motor shaft facing upward. Align the keyed shaft with the driven equipment, secure the 56C motor flange, and ensure proper lubrication per the manufacturer's guidelines. Verify torque and alignment before operation.
