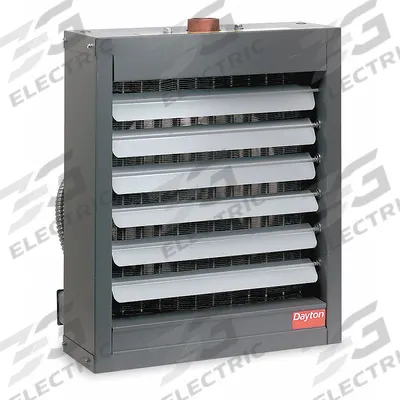

Dayton Hydronic Wall and Ceiling Unit Heater: Steam/Water - Suspended Horizontal Hydronic Wall & Ceiling Unit Heaters
DaytonSuspended Horizontal Hydronic Wall & Ceiling Unit Heaters

Dayton Hydronic Wall and Ceiling Unit Heater: Steam/Water

The DAYTON Hydronic Wall and Ceiling Unit Heater (SKU 5PV32) is a suspended horizontal unit heater designed for water heating, delivering 118,000 BtuH output at 200°F water and 2,200 cfm air flow. It features a 1-1/2…

SKU 3G-OTH-66031

Brand
Dayton
Item
Hydronic Wall and Ceiling Unit Heater: Steam/Water
Category
Suspended Horizontal Hydronic Wall & Ceiling Unit Heaters
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
5PV32
Type
118,000 BtuH Output @ 200 F Water
Air Flow
2,200 cfm
Fan Guard Type
Standard Guard
Heating Method
Water
Overall Dimensions - H x W x D
29 in x 24-5/8 in x 13-3/4 in
Connection Size, Connection Type
1-1/2 in, Threaded Female NPT
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Hydronic Wall and Ceiling Unit Heater (SKU 5PV32) is a suspended horizontal unit heater designed for water heating, delivering 118,000 BtuH output at 200°F water and 2,200 cfm air flow. It features a 1-1/2 in threaded female NPT connection and a standard fan guard, with overall dimensions of 29 in x 24-5/8 in x 13-3/4 in.

Frequently Asked Questions

What is the DAYTON Hydronic Wall and Ceiling Unit Heater used for?

The DAYTON Hydronic Wall and Ceiling Unit Heater is used for space heating in commercial and industrial buildings. It circulates hot water through a coil to warm air, which is then distributed by a fan. Common applications include warehouses, factories, and large open areas requiring supplemental or primary heating.

What are the specifications of the DAYTON 5PV32 unit heater?

The DAYTON 5PV32 delivers 118,000 BtuH output at 200°F water with 2,200 cfm air flow. It uses a 1-1/2 in threaded female NPT connection and a standard fan guard. Overall dimensions are 29 in high by 24-5/8 in wide by 13-3/4 in deep. It is a suspended horizontal hydronic unit heater for water heating.

Where to buy the DAYTON 5PV32 unit heater worldwide?

You can source the DAYTON 5PV32 unit heater through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time; we provide competitive pricing and reliable sourcing for this DAYTON model.

How to install a DAYTON hydronic unit heater?

Install the DAYTON hydronic unit heater by suspending it horizontally from ceiling or wall brackets, ensuring proper clearance for airflow. Connect the 1-1/2 in threaded female NPT water supply and return lines. Wire the fan motor to a suitable power source and thermostat. Follow local codes and the manufacturer's manual for safe operation.
