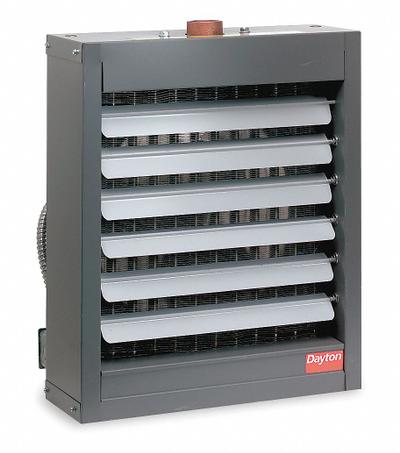

Dayton Hydronic Wall and Ceiling Unit Heater: Steam/Water - Suspended Horizontal Hydronic Wall & Ceiling Unit Heaters
DaytonSuspended Horizontal Hydronic Wall & Ceiling Unit Heaters

Dayton Hydronic Wall and Ceiling Unit Heater: Steam/Water

The DAYTON Hydronic Wall and Ceiling Unit Heater (SKU 5PV35) is a suspended horizontal unit heater for steam/water heating, delivering 148,000 BtuH output at 200°F water and 2.900 cfm airflow. It features a 1-1/2 in…

SKU 3G-OTH-66051

Brand
Dayton
Item
Hydronic Wall and Ceiling Unit Heater: Steam/Water
Category
Suspended Horizontal Hydronic Wall & Ceiling Unit Heaters
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
5PV35
Type
148,000 BtuH Output @ 200 F Water
Air Flow
2.900 cfm
Fan Guard Type
OSHA Compliant Guard
Heating Method
Water
Overall Dimensions - H x W x D
29 in x 24-5/8 in x 13-3/4 in
Connection Size, Connection Type
1-1/2 in, Threaded Female NPT
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Hydronic Wall and Ceiling Unit Heater (SKU 5PV35) is a suspended horizontal unit heater for steam/water heating, delivering 148,000 BtuH output at 200°F water and 2.900 cfm airflow. It features a 1-1/2 in threaded female NPT connection and an OSHA compliant fan guard, with overall dimensions of 29 in x 24-5/8 in x 13-3/4 in.
