Dayton Hydronic Wall and Ceiling Unit Heater: Steam/Water, 22,700 BtuH Output @ 200 F Water - Suspended Vertical Hydronic Wall & Ceiling Unit Heaters
DaytonSuspended Vertical Hydronic Wall & Ceiling Unit Heaters

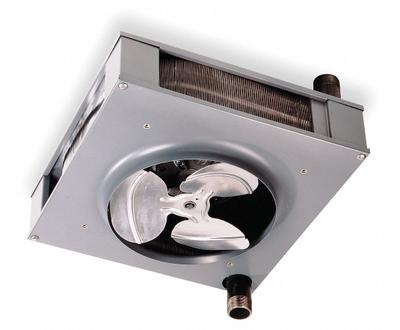

Dayton Hydronic Wall and Ceiling Unit Heater: Steam/Water, 22,700 BtuH Output @ 200 F Water

The DAYTON Hydronic Wall and Ceiling Unit Heater (SKU 5PV63) is a suspended vertical unit heater designed for water heating, delivering 595 cfm of air flow. It features a 1-1/2 in threaded male NPT connection and has…

SKU 3G-OTH-67057

Brand
Dayton
Item
Hydronic Wall and Ceiling Unit Heater: Steam/Water, 22,700 BtuH Output @ 200 F Water
Category
Suspended Vertical Hydronic Wall & Ceiling Unit Heaters
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
5PV63
Type
22,700 BtuH Output @ 200 F Water, 595 cfm
Air Flow
595 cfm
Fan Guard Type
No Guard
Heating Method
Water
Overall Dimensions - H x W x D
10-5/8 in x 18-1/4 in x 18-1/4 in
Connection Size, Connection Type
1-1/2 in, Threaded Male NPT
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Hydronic Wall and Ceiling Unit Heater (SKU 5PV63) is a suspended vertical unit heater designed for water heating, delivering 595 cfm of air flow. It features a 1-1/2 in threaded male NPT connection and has overall dimensions of 10-5/8 in x 18-1/4 in x 18-1/4 in, with no fan guard included.
