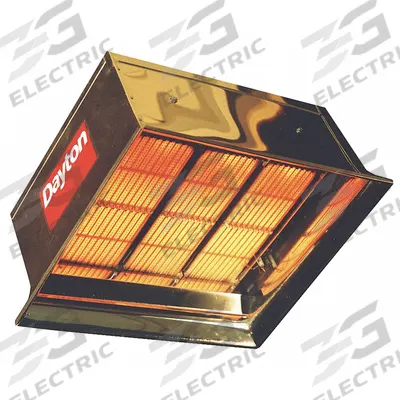

Dayton Gas Infrared Flat Panel Heater: Propane, 90,000 BtuH Heating Capacity Input - Suspended Infrared Flat Panel Gas Ceiling Heaters
DaytonSuspended Infrared Flat Panel Gas Ceiling Heaters

Dayton Gas Infrared Flat Panel Heater: Propane, 90,000 BtuH Heating Capacity Input

The DAYTON Gas Infrared Flat Panel Heater (SKU 5VD66) is a suspended propane-fired ceiling heater for indoor use only. It provides 90,000 BtuH heating capacity input and offers floor coverage of 20 ft x 20 ft at a…

SKU 3G-OTH-66234

Brand
Dayton
Item
Gas Infrared Flat Panel Heater: Propane, 90,000 BtuH Heating Capacity Input
Category
Suspended Infrared Flat Panel Gas Ceiling Heaters
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
5VD66
Type
20 ft x 20 ft
Fuel Type
Propane
For Use Outdoors
Indoor Use Only
Min. Mounting Height
16 to 18 ft
BtuH Heating Capacity Input
90,000
Overall Dimensions - H x W x D
22-1/2 in x 26-5/8 in x 15-1/4 in
Floor Coverage @ Minimum Mounting Height
20 ft x 20 ft
Clearance to Combustibles - Top x Below x Sides
42 in x 98 in x 48 in
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Gas Infrared Flat Panel Heater (SKU 5VD66) is a suspended propane-fired ceiling heater for indoor use only. It provides 90,000 BtuH heating capacity input and offers floor coverage of 20 ft x 20 ft at a minimum mounting height of 16 to 18 ft. The unit measures 22-1/2 in x 26-5/8 in x 15-1/4 in (H x W x D) with clearance to combustibles of 42 in top, 98 in below, and 48 in sides.

Frequently Asked Questions

What is the DAYTON Gas Infrared Flat Panel Heater used for?

The DAYTON Gas Infrared Flat Panel Heater (5VD66) is a suspended propane-fired ceiling heater designed for indoor industrial and commercial spaces. It provides 90,000 BtuH heating capacity input and covers a 20 ft x 20 ft floor area at a minimum mounting height of 16 to 18 ft.

What are the specifications of the DAYTON 5VD66 heater?

The DAYTON 5VD66 is a propane infrared flat panel heater with 90,000 BtuH input. It measures 22-1/2 in x 26-5/8 in x 15-1/4 in (H x W x D). Clearance to combustibles is 42 in top, 98 in below, and 48 in sides. Minimum mounting height is 16 to 18 ft, with floor coverage of 20 ft x 20 ft. Indoor use only.

Where to buy the DAYTON 5VD66 heater worldwide?

3G Electric supplies the DAYTON 5VD66 gas infrared flat panel heater to customers worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time.

How to install the DAYTON gas infrared flat panel heater?

Install the DAYTON 5VD66 heater suspended from a ceiling at a minimum height of 16 to 18 ft, ensuring clearances to combustibles of 42 in top, 98 in below, and 48 in sides. The unit is for indoor use only. Follow local codes and the manufacturer's manual for gas and electrical connections.
