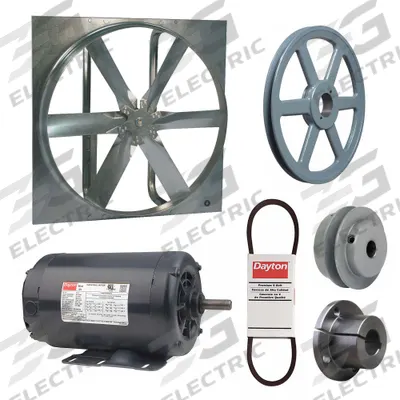

Dayton Exhaust Fan with Drive Package: Belt Drive, 30 in Blade, 1 hp, 11,061 cfm - Belt-Drive Panel Exhaust Fans with Drive Package
DaytonBelt-Drive Panel Exhaust Fans with Drive Package

Dayton Exhaust Fan with Drive Package: Belt Drive, 30 in Blade, 1 hp, 11,061 cfm

The Dayton 7AD36 is an unassembled belt-drive panel exhaust fan with a drive package, featuring a 30-inch blade, 1 hp motor, and 11,061 cfm airflow at 230/460V AC, 3-phase. It has a zinc-plated steel frame, an open…

SKU 3G-OTH-80987

Brand
Dayton
Item
Exhaust Fan with Drive Package: Belt Drive, 30 in Blade, 1 hp, 11,061 cfm
Category
Belt-Drive Panel Exhaust Fans with Drive Package
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
7AD36
Type
1 hp, 11,061 cfm, 3 ph
AC
230/460V
Blade
30 in
Assembled
Unassembled
Guard Type
None
Motor Type
3-Phase
Frame Finish
Zinc Plated
Frame Material
Steel
Motor Enclosure
Open Dripproof
Enclosure Design
Open Dripproof Motor
Motor Insulation
Class F
Number of Speeds
1
Nameplate Voltage
230/460V AC
Guard Type Subheads
Without Intake Guards
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Dayton 7AD36 is an unassembled belt-drive panel exhaust fan with a drive package, featuring a 30-inch blade, 1 hp motor, and 11,061 cfm airflow at 230/460V AC, 3-phase. It has a zinc-plated steel frame, an open dripproof motor enclosure with Class F insulation, and is supplied without intake guards.

Frequently Asked Questions

What is the Dayton 7AD36 exhaust fan used for?

The Dayton 7AD36 belt-drive panel exhaust fan is used for general ventilation in industrial facilities, warehouses, and commercial buildings. It moves 11,061 cfm at 230/460V AC, 3-phase, making it suitable for exhausting heat, fumes, or stale air from large open areas.

What are the specifications of the Dayton 7AD36 exhaust fan?

The Dayton 7AD36 has a 30-inch blade, 1 hp motor, 11,061 cfm airflow, and 230/460V AC, 3-phase power. It features a zinc-plated steel frame, open dripproof motor enclosure with Class F insulation, and is supplied unassembled without intake guards.

Where to buy the Dayton 7AD36 exhaust fan worldwide?

3G Electric supplies the Dayton 7AD36 belt-drive exhaust fan to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your site. Contact us for a quote and lead time on this unassembled fan with drive package.

How to install the Dayton 7AD36 unassembled exhaust fan?

Installation of the Dayton 7AD36 requires assembling the belt-drive package, mounting the fan panel securely to a wall or roof opening, and connecting the 230/460V AC, 3-phase motor per local electrical codes. Ensure proper belt tension and alignment, and use a certified electrician for wiring.
