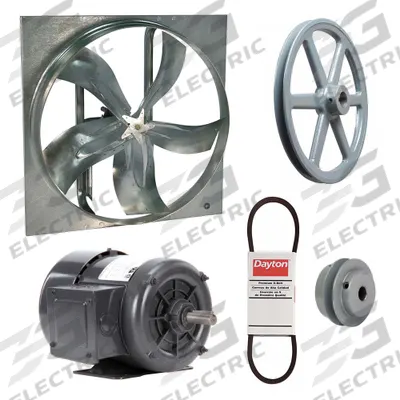

Dayton Exhaust Fan with Drive Package: Belt Drive, 36 in Blade, 3/4 hp, 14,223 cfm - Belt-Drive Panel Exhaust Fans with Drive Package
DaytonBelt-Drive Panel Exhaust Fans with Drive Package

Dayton Exhaust Fan with Drive Package: Belt Drive, 36 in Blade, 3/4 hp, 14,223 cfm

The Dayton 7M808 is an unassembled belt-drive panel exhaust fan with a 36-inch blade, 3/4 hp motor, and 14,223 cfm airflow. It features a 3-phase, 208-230/460V AC motor with a totally enclosed fan-cooled enclosure…

SKU 3G-OTH-81136

Brand
Dayton
Item
Exhaust Fan with Drive Package: Belt Drive, 36 in Blade, 3/4 hp, 14,223 cfm
Category
Belt-Drive Panel Exhaust Fans with Drive Package
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
7M808
Type
3/4 hp, 14,223 cfm, 3 ph
AC
208-230/460V
Blade
36 in
Assembled
Unassembled
Guard Type
None
Motor Type
3-Phase
Frame Finish
Zinc Plated
Frame Material
Steel
Motor Enclosure
Totally Enclosed Fan Cooled
Enclosure Design
Totally Enclosed Motor
Motor Insulation
Class B
Number of Speeds
1
Nameplate Voltage
208-230/460V AC
Guard Type Subheads
Without Intake Guards
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Dayton 7M808 is an unassembled belt-drive panel exhaust fan with a 36-inch blade, 3/4 hp motor, and 14,223 cfm airflow. It features a 3-phase, 208-230/460V AC motor with a totally enclosed fan-cooled enclosure and Class B insulation. The frame is made of zinc-plated steel, and the unit is supplied without intake guards.

Frequently Asked Questions

What is the Dayton 7M808 exhaust fan used for?

The Dayton 7M808 belt-drive panel exhaust fan moves 14,223 cfm of air for industrial ventilation, cooling, or fume extraction in factories, warehouses, and commercial buildings. Its 36-inch blade and 3/4 hp motor handle high-volume airflow in open or ducted applications.

What are the specifications of the Dayton 7M808 exhaust fan?

The Dayton 7M808 is a 36-inch belt-drive panel fan with a 3/4 hp, 3-phase motor at 208-230/460V AC, delivering 14,223 cfm. It has a zinc-plated steel frame, Class B motor insulation, and a totally enclosed fan-cooled enclosure. The unit is unassembled and supplied without intake guards.

Where to buy the Dayton 7M808 exhaust fan worldwide?

3G Electric supplies the Dayton 7M808 belt-drive exhaust fan to customers worldwide. We handle full logistics, customs clearance, and delivery to your site. Contact us for a quote and lead time on this unassembled 36-inch, 3/4 hp, 3-phase fan.

How to install the Dayton 7M808 belt-drive exhaust fan?

Install the Dayton 7M808 by mounting the unassembled frame securely to a wall or roof opening, then attaching the belt-drive motor and 36-inch blade per the manual. Ensure proper alignment of belts and pulleys, and wire the 3-phase motor to 208-230/460V AC supply. Always follow local electrical codes.
