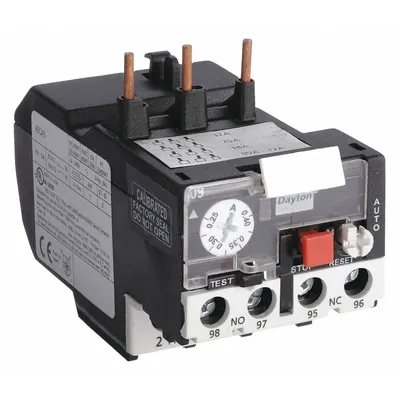

Dayton Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity
The DAYTON Overload Relay is an IEC thermal overload relay with integrated bimetallic elements, eliminating the need for separate thermal units. It features 1NO/1NC auxiliary contacts and phase loss sensitivity, and…
SKU 3G-OTH-39302
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The DAYTON Overload Relay is an IEC thermal overload relay with integrated bimetallic elements, eliminating the need for separate thermal units. It features 1NO/1NC auxiliary contacts and phase loss sensitivity, and is compatible with Dayton contactors in the 9 to 18 Amp models. This 3-pole relay covers a current range of 0.25 A to 0.4 A.
Frequently Asked Questions
What is the DAYTON Overload Relay used for?
The DAYTON Overload Relay protects motors from thermal damage by monitoring current and tripping on overload or phase loss. It is used in industrial motor control panels with compatible Dayton contactors (9 to 18 Amp models).
What are the specifications of the DAYTON Overload Relay ?
The DAYTON Overload Relay is a 3-pole IEC thermal overload relay with integrated bimetallic elements, eliminating separate thermal units. It has 1NO/1NC auxiliary contacts, phase loss sensitivity, and a current range of 0.25 A to 0.4 A. It is compatible with Dayton contactors (9 to 18 Amp models).
Where to buy the DAYTON Overload Relay worldwide?
You can source the DAYTON Overload Relay from 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time.
How to select the DAYTON Overload Relay for a motor?
Select the DAYTON Overload Relay by matching its current range (0.25 A to 0.4 A) to the motor full-load current. Ensure compatibility with a Dayton contactor in the 9 to 18 Amp range. The relay includes integrated bimetallic elements, so no separate thermal units are needed.
