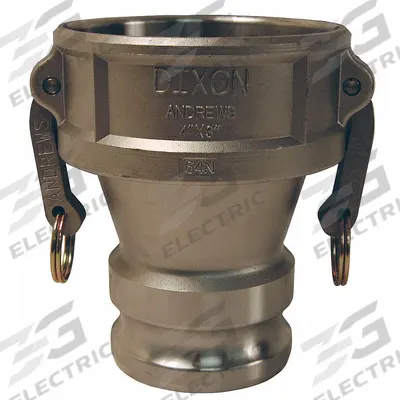

DIXON VALVE & COUPLING Cam and Groove Adapter: 125 psi Max. Working Pressure @ 70 F, 6 9/32 in Overall Lg - Type DA Stainless Steel Cam & Groove Fittings
DIXON VALVE & COUPLINGType DA Stainless Steel Cam & Groove Fittings

DIXON VALVE & COUPLING Cam and Groove Adapter: 125 psi Max. Working Pressure @ 70 F, 6 9/32 in Overall Lg

The DIXON VALVE & COUPLING Type DA Stainless Steel Cam & Groove Fittings, model 3020-DA-SS, is a female coupler x male adapter with a 316 stainless steel body and a nitrile gasket. It includes a locking arm and has a…

SKU 3G-OTH-450678

Brand
DIXON VALVE & COUPLING
Item
Cam and Groove Adapter: 125 psi Max. Working Pressure @ 70 F, 6 9/32 in Overall Lg
Category
Type DA Stainless Steel Cam & Groove Fittings
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

DIXON VALVE & COUPLING
Manufacturer Part Number
3020-DA-SS
Type
Working Pressure @ 70 F, Nitrile
Overall Lg
6 9/32 in
Fitting Type
Female Coupler x Male Adapter
Body Material
316 Stainless Steel
Gasket Material
Nitrile
Includes Locking Arm
Yes
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

DIXON VALVE & COUPLING Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DIXON VALVE & COUPLING Type DA Stainless Steel Cam & Groove Fittings, model 3020-DA-SS, is a female coupler x male adapter with a 316 stainless steel body and a nitrile gasket. It includes a locking arm and has a maximum working pressure of 125 psi at 70°F, with an overall length of 6 9/32 inches.

Frequently Asked Questions

What is the DIXON VALVE & COUPLING 3020-DA-SS cam and groove adapter used for?

The DIXON VALVE & COUPLING 3020-DA-SS is a Type DA stainless steel cam and groove adapter used for quick-connect fluid transfer in industrial applications. Its 316 stainless steel body and nitrile gasket suit chemical, petroleum, and food processing environments where corrosion resistance and secure coupling are required.

What are the specifications of the DIXON VALVE & COUPLING 3020-DA-SS?

The DIXON VALVE & COUPLING 3020-DA-SS is a female coupler x male adapter with a 316 stainless steel body and nitrile gasket. It has a maximum working pressure of 125 psi at 70°F, an overall length of 6 9/32 inches, and includes a locking arm for secure connection.

Where to buy the DIXON VALVE & COUPLING 3020-DA-SS worldwide?

3G Electric supplies the DIXON VALVE & COUPLING 3020-DA-SS worldwide. As a global industrial solutions provider, we handle full logistics and customs clearance to deliver this cam and groove adapter to your facility. Contact us for pricing and lead time on this 316 stainless steel fitting.

How to select the right gasket material for a cam and groove adapter?

Select gasket material based on fluid compatibility and temperature range. For the DIXON VALVE & COUPLING 3020-DA-SS, the nitrile gasket suits oils, fuels, and water up to 70°F. For aggressive chemicals or higher temperatures, consult the manufacturer's chemical resistance chart to avoid gasket degradation.
