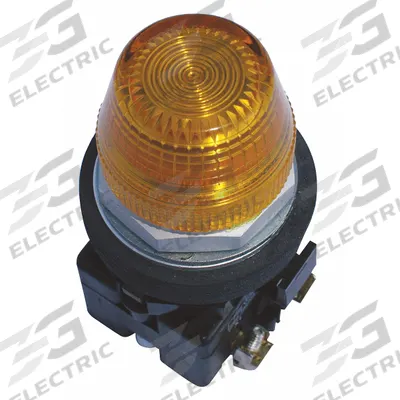

EATON Pilot Light: 30 mm Panel Mounting Size, Yellow, LED - LED Pilot-Lights
EATONLED Pilot-Lights

EATON Pilot Light: 30 mm Panel Mounting Size, Yellow, LED

The EATON HT8HBYL1 is a 30 mm panel-mounting-size LED pilot light from the HT800 series. This yellow indicator features a 120 V AC maximum supply voltage rating and does not include a push-to-test function.

SKU 3G-OTH-34830

Brand
EATON
Item
Pilot Light: 30 mm Panel Mounting Size, Yellow, LED
Category
LED Pilot-Lights
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
HT8HBYL1
Series
HT800
Type
Yellow, LED
Includes Push-To-Test
No Push-To-Test Included
AC Max Volt Rating (Supply)
120 V
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON HT8HBYL1 is a 30 mm panel-mounting-size LED pilot light from the HT800 series. This yellow indicator features a 120 V AC maximum supply voltage rating and does not include a push-to-test function.

Frequently Asked Questions

What is the EATON HT8HBYL1 pilot light used for?

The EATON HT8HBYL1 is a 30 mm panel-mounting-size LED pilot light used as a yellow status indicator on industrial control panels, machinery, and automation equipment. It signals operational states such as standby or caution in manufacturing, process control, and building management systems where a 120 V AC supply is available.

What are the specifications of the EATON HT8HBYL1 pilot light?

The EATON HT8HBYL1 is a yellow LED pilot light from the HT800 series with a 30 mm panel mounting size. It has a maximum supply voltage rating of 120 V AC and does not include a push-to-test function. The manufacturer part number is HT8HBYL1, and it is designed for industrial indicator applications.

Where to buy the EATON HT8HBYL1 pilot light worldwide?

3G Electric supplies the EATON HT8HBYL1 pilot light to customers worldwide. As a global industrial equipment distributor established in 1990, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time on this HT800 series indicator from EATON.

How to install the EATON HT8HBYL1 pilot light?

To install the EATON HT8HBYL1, mount it in a 30 mm panel cutout and secure it with the provided locking ring. Connect the supply wires to the LED terminals, ensuring the voltage does not exceed 120 V AC. Follow standard industrial wiring practices and verify the indicator illuminates yellow when powered.
