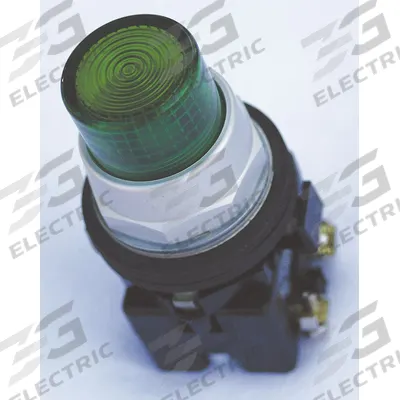

EATON Illuminated Push Button: Illuminated, Extended Profile, Metallic, 30 mm
The EATON Illuminated Extended-Length Push Button (MPN HT8GBGAL1) is a momentary-action, metallic push button from the HT800 series. It features an illuminated, extended profile in a 30 mm size with one normally open…
SKU 3G-OTH-31515
Need installation or engineering help?
Ask a question
Product Description
The EATON Illuminated Extended-Length Push Button (MPN HT8GBGAL1) is a momentary-action, metallic push button from the HT800 series. It features an illuminated, extended profile in a 30 mm size with one normally open (1NO) contact configuration.
Frequently Asked Questions
What is the EATON Illuminated Extended-Length Push Button used for?
The EATON Illuminated Extended-Length Push Button (MPN HT8GBGAL1) is used as a momentary-action control switch in industrial machinery, control panels, and automation systems. Its illuminated extended profile provides clear visual status indication in low-light or high-visibility environments, making it suitable for manufacturing, processing, and heavy-equipment applications.
What are the specifications of the EATON HT8GBGAL1 push button?
The EATON HT8GBGAL1 is a momentary-action, illuminated push button from the HT800 series. It features an extended metallic profile in a 30 mm size with one normally open (1NO) contact. The push button material is metallic, and the part number is HT8GBGAL1. It is designed for reliable industrial control applications.
Where to buy the EATON HT8GBGAL1 push button worldwide?
The EATON HT8GBGAL1 illuminated push button is available to order through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact 3G Electric for pricing and lead time on this EATON HT800 series component.
How to install the EATON HT8GBGAL1 illuminated push button?
Install the EATON HT8GBGAL1 by mounting it in a 30 mm panel cutout and securing it with the provided locking ring. Wire the 1NO contact to your control circuit per the manufacturer's wiring diagram. Ensure power is off during installation. Use appropriate torque for terminal connections to avoid damage. Follow standard industrial safety practices.
Used in
Common applications for EATONEATON Products
3G Electric supplies EATON illuminated extended-length push buttons. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
