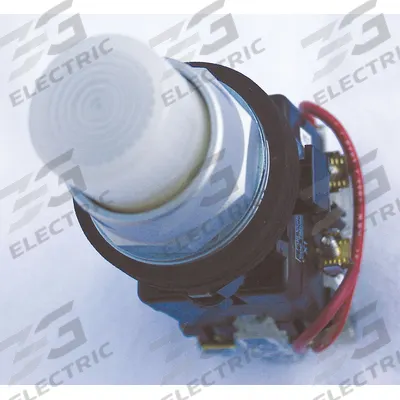

EATON Illuminated Push Button: Illuminated, Extended Profile, Metallic, 30 mm
The EATON Illuminated Extended-Length Push Button (MPN HT8GBWAL1) is a momentary-action, metallic push button from the HT800 series. It features an illuminated, extended profile in a 30 mm size with 1 normally open…
SKU 3G-OTH-34407
Need installation or engineering help?
Ask a question
Product Description
The EATON Illuminated Extended-Length Push Button (MPN HT8GBWAL1) is a momentary-action, metallic push button from the HT800 series. It features an illuminated, extended profile in a 30 mm size with 1 normally open (1NO) contact configuration.
Frequently Asked Questions
What is the EATON illuminated push button used for?
The EATON illuminated push button (MPN HT8GBWAL1) is used as a momentary control switch in industrial machinery, control panels, and automation systems. Its illuminated extended profile provides clear visual status indication in low-light or high-noise environments, making it suitable for manufacturing, processing, and heavy-equipment applications.
What are the specifications of the EATON HT8GBWAL1 push button?
The EATON HT8GBWAL1 is a momentary-action, illuminated push button from the HT800 series. It has a metallic construction, an extended profile, a 30 mm mounting size, and a 1 normally open (1NO) contact configuration. The manufacturer part number is HT8GBWAL1, and the push button material is metallic.
Where to buy the EATON HT8GBWAL1 push button worldwide?
You can source the EATON HT8GBWAL1 illuminated push button worldwide through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time; we supply genuine EATON HT800 series components to industrial buyers globally.
How to install the EATON illuminated push button?
To install the EATON HT8GBWAL1, mount it in a 30 mm panel cutout and secure it with the provided locking ring. Wire the 1NO contact to your control circuit per the wiring diagram. Ensure the supply voltage matches the illumination rating. Follow standard industrial safety practices and consult the EATON HT800 series installation manual for torque and clearance details.
