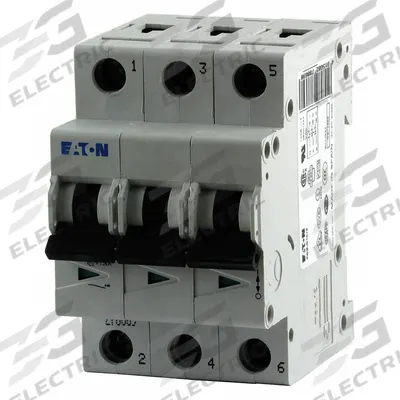

EATON Supplementary Protector: 8 A Amps, 96V DC, 15kA at 277/480V AC, Lug, FAZ - C-Curve, 3-Pole UL1077 DIN Rail-Mount Supplementary Protectors
EATONC-Curve, 3-Pole UL1077 DIN Rail-Mount Supplementary Protectors

EATON Supplementary Protector: 8 A Amps, 96V DC, 15kA at 277/480V AC, Lug, FAZ

The EATON FAZ-C8/3 is a C-Curve, 3-Pole UL1077 DIN Rail-Mount Supplementary Protector rated at 8 Amps. It carries a Max. AIR Rating of 15kA at 277/480V AC, with AC Voltage Rating of 277/480V AC and DC Voltage Rating…

SKU 3G-OTH-19609

Brand
EATON
Item
Supplementary Protector: 8 A Amps, 96V DC, 15kA at 277/480V AC, Lug, FAZ
Category
C-Curve, 3-Pole UL1077 DIN Rail-Mount Supplementary Protectors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
FAZ-C8/3
Series
FAZ
Type
15kA at 277/480V AC, Lug, FAZ
AC
277/480V
DC
96V
Max. AIR Rating
15kA at 277/480V AC
AC Voltage Rating
277/480V AC
DC Voltage Rating
96V DC
Terminal Connection
Lug
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON FAZ-C8/3 is a C-Curve, 3-Pole UL1077 DIN Rail-Mount Supplementary Protector rated at 8 Amps. It carries a Max. AIR Rating of 15kA at 277/480V AC, with AC Voltage Rating of 277/480V AC and DC Voltage Rating of 96V DC. This unit features Lug terminal connections and is part of the EATON FAZ series.
