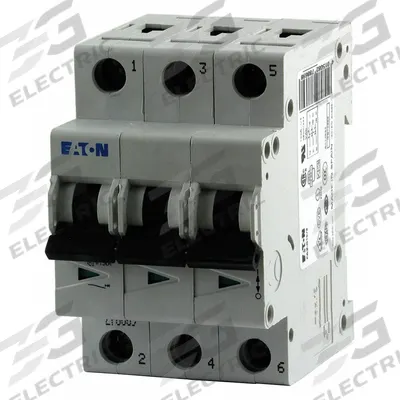

EATON Supplementary Protector: 10 A Amps, 96V DC, 15kA at 277/480V AC, Lug, FAZ - C-Curve, 3-Pole UL1077 DIN Rail-Mount Supplementary Protectors
EATONC-Curve, 3-Pole UL1077 DIN Rail-Mount Supplementary Protectors

EATON Supplementary Protector: 10 A Amps, 96V DC, 15kA at 277/480V AC, Lug, FAZ

The EATON FAZ-C10/3 is a C-Curve, 3-Pole UL1077 DIN Rail-Mount Supplementary Protector rated for 10 A Amps. It carries a Max. AIR Rating of 15kA at 277/480V AC, with AC Voltage Rating of 277/480V AC and DC Voltage…

SKU 3G-OTH-19965

Brand
EATON
Item
Supplementary Protector: 10 A Amps, 96V DC, 15kA at 277/480V AC, Lug, FAZ
Category
C-Curve, 3-Pole UL1077 DIN Rail-Mount Supplementary Protectors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
FAZ-C10/3
Series
FAZ
Type
15kA at 277/480V AC, Lug, FAZ
AC
277/480V
DC
96V
Max. AIR Rating
15kA at 277/480V AC
AC Voltage Rating
277/480V AC
DC Voltage Rating
96V DC
Terminal Connection
Lug
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON FAZ-C10/3 is a C-Curve, 3-Pole UL1077 DIN Rail-Mount Supplementary Protector rated for 10 A Amps. It carries a Max. AIR Rating of 15kA at 277/480V AC, with AC Voltage Rating of 277/480V AC and DC Voltage Rating of 96V DC, and features Lug terminal connections.

Frequently Asked Questions

What is the EATON FAZ-C10/3 used for?

The EATON FAZ-C10/3 is a C-curve, 3-pole UL1077 supplementary protector used to safeguard branch circuits and control panels against overcurrent and short circuits in industrial and commercial applications. It is commonly installed on DIN rails in distribution boards, motor control centers, and HVAC equipment.

What are the specifications of the EATON FAZ-C10/3?

The EATON FAZ-C10/3 is rated for 10 A amps with a maximum AIR rating of 15 kA at 277/480 V AC. It has an AC voltage rating of 277/480 V AC and a DC voltage rating of 96 V DC. Terminal connection is lug type, and it is part of the FAZ series from EATON.

Where to buy the EATON FAZ-C10/3 worldwide?

You can source the EATON FAZ-C10/3 through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time; we supply genuine EATON FAZ series supplementary protectors.

How to install the EATON FAZ-C10/3 supplementary protector?

Install the EATON FAZ-C10/3 by snapping it onto a standard 35 mm DIN rail. Ensure the circuit is de-energized, then connect line and load wires to the lug terminals using the appropriate torque specified by EATON. Verify the C-curve trip characteristic matches your load type before energizing.

Used in

Common applications for EATON
Industrial control panels — Eaton M22 flush push buttons for momentary machine start/stop commands
Motor control centers — Eaton NEMA reversing starters with electronic overloads for conveyor belt direction control
HVAC systems — Eaton definite purpose starters with thermal overloads for compressor and fan motor protection
Process automation — Eaton SL7 tower lights with IP66 bases for visual status indication in wet environments
Machine tool signaling — Eaton 10250T LED pilot lights with push-to-test for operator panel status lamps
Access control — Eaton M22 keyed selector switches for equipment mode selection in secured areas
