EATON Lighted Rocker Switch: 2 Positions, SPST, Off/Momentary On - General Purpose Rocker Switches
EATONGeneral Purpose Rocker Switches

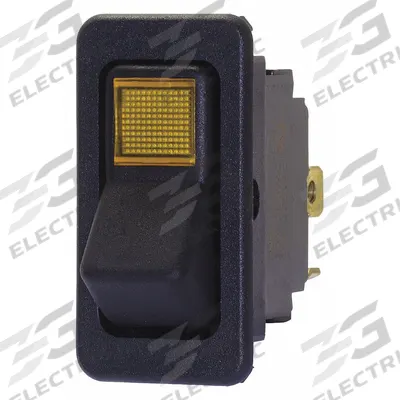

EATON Lighted Rocker Switch: 2 Positions, SPST, Off/Momentary On

The EATON Lighted Rocker Switch is a general-purpose rocker switch with a 2-position, SPST, Off/Momentary On configuration and amber illumination. It features an AC contact rating of 10 A @ 250 V, a DC contact rating…

SKU 3G-OTH-34750

Brand
EATON
Item
Lighted Rocker Switch: 2 Positions, SPST, Off/Momentary On
Category
General Purpose Rocker Switches
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
8005K37N113V42
Series
8005
Horsepower
3/4 hp @ 250 V
Switch Color
Black
Includes Lens
Lens Included
Displayed Brand
EATON
AC Contact Rating
10 A @ 250 V
DC Contact Rating
15 A @ 28 V
Includes Lamp Module
Lamp Module Included
Operator Illumination
Illuminated
Terminal Connection Type
Screw Terminals
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON Lighted Rocker Switch is a general-purpose rocker switch with a 2-position, SPST, Off/Momentary On configuration and amber illumination. It features an AC contact rating of 10 A @ 250 V, a DC contact rating of 15 A @ 28 V, and a horsepower rating of 3/4 hp @ 250 V. This illuminated switch includes a lamp module and lens, has a black switch color, and uses screw terminals for connection.

Frequently Asked Questions

What is the EATON Lighted Rocker Switch used for?

The EATON Lighted Rocker Switch is a general-purpose switch for industrial control panels, machinery, and equipment requiring momentary on/off control with amber illumination. It suits applications needing SPST switching at 10 A @ 250 V AC or 15 A @ 28 V DC, including motor circuits up to 3/4 hp.

What are the specifications of the EATON Lighted Rocker Switch 8005K37N113V42?

This EATON switch is SPST, 2-position Off/Momentary On, with amber illumination. AC contact rating is 10 A @ 250 V; DC rating is 15 A @ 28 V; horsepower rating is 3/4 hp @ 250 V. It includes a lamp module and lens, has black color, and uses screw terminals.

Where to buy the EATON Lighted Rocker Switch worldwide?

3G Electric supplies the EATON Lighted Rocker Switch worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this and other EATON switch models.

How to install the EATON Lighted Rocker Switch with screw terminals?

Ensure power is off. Strip wires to appropriate length, insert into screw terminals, and tighten securely. Mount the switch into a panel cutout. Verify the lamp module is seated. Follow NEC and local codes. For specific torque values, consult the manufacturer's datasheet.
