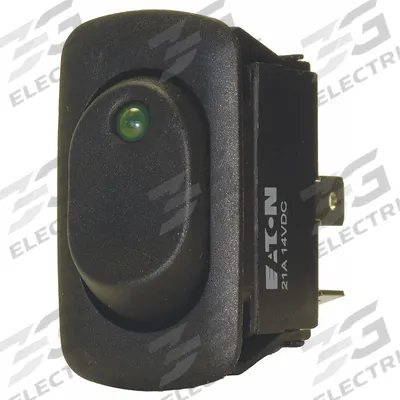

EATON Lighted Rocker Switch: 2 Positions, SPST, Off/On - General Purpose Rocker Switches
EATONGeneral Purpose Rocker Switches

EATON Lighted Rocker Switch: 2 Positions, SPST, Off/On

The EATON Lighted Rocker Switch is a general purpose rocker switch from the X Series, featuring a 2-position SPST Off/On configuration with amber illumination. It has an AC contact rating of 16 A @ 125 V and a…

SKU 3G-OTH-35206

Brand
EATON
Item
Lighted Rocker Switch: 2 Positions, SPST, Off/On
Category
General Purpose Rocker Switches
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
XR3AEX3NV1XX
Series
X
Horsepower
3/4 hp @ 277 V
Includes Lens
Lens Included
Displayed Brand
EATON
AC Contact Rating
16 A @ 125 V
Operator Illumination
Illuminated
Terminal Connection Type
0.25 in Quick Connect Tab
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON Lighted Rocker Switch is a general purpose rocker switch from the X Series, featuring a 2-position SPST Off/On configuration with amber illumination. It has an AC contact rating of 16 A @ 125 V and a horsepower rating of 3/4 hp @ 277 V, with 0.25 in Quick Connect Tab terminals and a lens included.

Frequently Asked Questions

What is the EATON XR3AEX3NV1XX lighted rocker switch used for?

The EATON XR3AEX3NV1XX is a general purpose SPST rocker switch used for on/off control in industrial equipment, lighting, and machinery. Its 16 A @ 125 V AC rating and 3/4 hp @ 277 V make it suitable for motor and power applications requiring a durable illuminated switch.

What are the specifications of the EATON XR3AEX3NV1XX rocker switch?

The EATON XR3AEX3NV1XX is a 2-position SPST Off/On switch with amber illumination. It has an AC contact rating of 16 A @ 125 V, a horsepower rating of 3/4 hp @ 277 V, and 0.25 in Quick Connect Tab terminals. It includes a lens and is part of the EATON X Series.

Where to buy the EATON XR3AEX3NV1XX rocker switch worldwide?

You can source the EATON XR3AEX3NV1XX through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this EATON X Series switch.

How to install the EATON XR3AEX3NV1XX lighted rocker switch?

Install the EATON XR3AEX3NV1XX by connecting the 0.25 in Quick Connect Tab terminals to your circuit. Ensure power is off before wiring. The SPST Off/On configuration controls a single circuit. Secure the switch in a panel cutout and test operation. Follow local electrical codes for safe installation.
