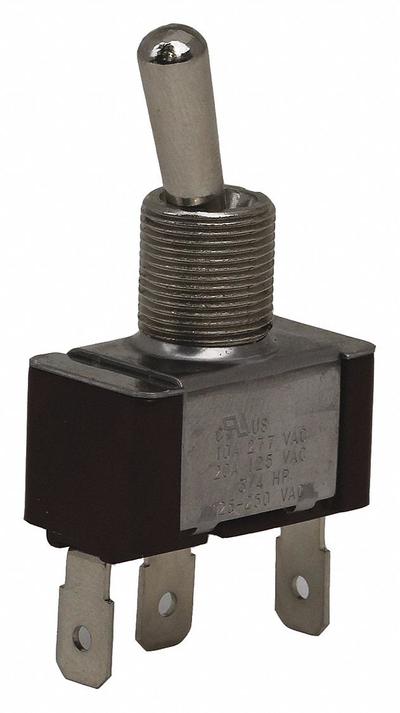

EATON Toggle Switch: 3 Position, 3 Connections, SPDT, Solder Lug Connection - Panel-Mount Toggle Switches

EATONPanel-Mount Toggle Switches

EATON Toggle Switch: 3 Position, 3 Connections, SPDT, Solder Lug Connection

The EATON X Series Toggle Switch (MPN XTD2D3A) is a panel-mount, single-pole double-throw (SPDT) switch with a 3-position On/None/Momentary On function. It features a solder lug connection and is rated for 10 A at…

SKU 3G-OTH-33551

Brand

EATON

Item

Toggle Switch: 3 Position, 3 Connections, SPDT, Solder Lug Connection

Category

Panel-Mount Toggle Switches

Available to Order

Trade pricing by quote — replies within 24h

Qty

WhatsApp an engineer

No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.

Create free account →Log in

Worldwide Shipping

Air & sea freight

Datasheet on Request

Technical specs

1-Day Quote

Replies within 24h

Technical Specifications

EATON

Manufacturer Part Number

XTD2D3A

Series

X

Type

SPDT, Solder Lug Connection, X Series

Horsepower

3/4 hp

Connections

3

AC Contact Rating

10 A @ 277 V

Switch Function Configuration

On/None/Momentary On

View Full Spec Sheet

Technical Documents

No technical documents available for this product.

Request documentation →

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

EATON Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON X Series Toggle Switch (MPN XTD2D3A) is a panel-mount, single-pole double-throw (SPDT) switch with a 3-position On/None/Momentary On function. It features a solder lug connection and is rated for 10 A at 277 V AC with a horsepower rating of 3/4 hp.
