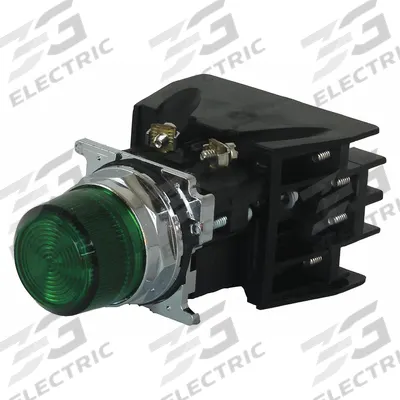

EATON Illuminated Push Button: 30 mm, Metallic, Extended Profile
The EATON Illuminated Push Button is a 30 mm metallic extended-profile push button operator from the 10250T series. This momentary-action device features a 1NO/1NC contact configuration and is rated for 10 A at 600 V…
SKU 3G-OTH-32537
Need installation or engineering help?
Ask a question
Product Description
The EATON Illuminated Push Button is a 30 mm metallic extended-profile push button operator from the 10250T series. This momentary-action device features a 1NO/1NC contact configuration and is rated for 10 A at 600 V AC and 2.5 A at 250 V DC. The illuminated operator is constructed with a metal push button material.
Frequently Asked Questions
What is the EATON illuminated push button used for?
The EATON illuminated push button is used for momentary control in industrial machinery, panel building, and process automation. Its 30 mm metallic extended profile suits harsh environments, while the 1NO/1NC contacts handle 10 A at 600 V AC or 2.5 A at 250 V DC. The built-in illumination provides clear operator status feedback.
What are the specifications of the EATON 10250T828GD2A push button?
The EATON 10250T828GD2A is a 30 mm metallic extended-profile illuminated push button from the 10250T series. It has momentary action, 1NO/1NC contacts, AC rating 10 A @ 600 V, DC rating 2.5 A @ 250 V, and a metal push button material. It is part number 10250T828GD2A from EATON.
Where to buy the EATON 10250T828GD2A push button worldwide?
You can source the EATON 10250T828GD2A illuminated push button worldwide through 3G Electric. As a global industrial equipment distributor since 1990, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time.
How to install the EATON illuminated push button?
Install the EATON 30 mm push button by mounting it into a standard 30 mm panel cutout. Wire the 1NO/1NC contacts according to your control circuit, ensuring the supply voltage matches the illumination rating. Use proper torque on the terminal screws and verify momentary action before energizing.
Used in
Common applications for EATONEATON Products
3G Electric supplies EATON illuminated extended-length push buttons. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
