EATON Molded Case Circuit Breaker: 250 A Amps, 65kA at 600V AC, Fixed, ABC, Line/Load Lug - Eaton Motor Circuit Protectors

EATONEaton Motor Circuit Protectors

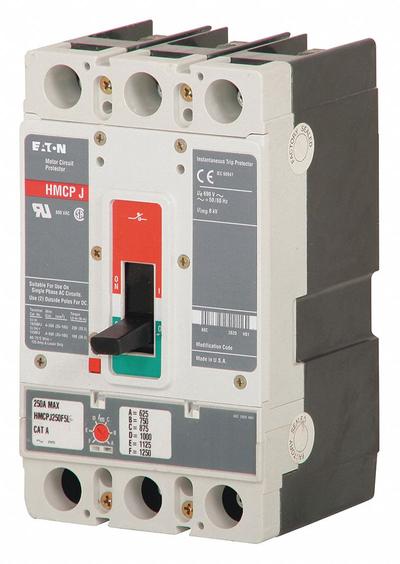

EATON Molded Case Circuit Breaker: 250 A Amps, 65kA at 600V AC, Fixed, ABC, Line/Load Lug

The EATON HMCPJ250W5L is a molded case circuit breaker from the HMCP series, designed as a motor circuit protector with a 250A/JG frame size. It features a fixed instantaneous trip, a maximum AIR rating of 65kA at…

SKU 3G-OTH-23728

Brand

EATON

Item

Molded Case Circuit Breaker: 250 A Amps, 65kA at 600V AC, Fixed, ABC, Line/Load Lug

Category

Eaton Motor Circuit Protectors

Available to Order

Trade pricing by quote — replies within 24h

Qty

WhatsApp an engineer

No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.

Create free account →Log in

Worldwide Shipping

Air & sea freight

Datasheet on Request

Technical specs

1-Day Quote

Replies within 24h

Technical Specifications

EATON

Manufacturer Part Number

HMCPJ250W5L

Series

HMCP

Type

65kA at 600V AC, Fixed, ABC, Line/Load Lug, Std, HMCP

Frame Size

250A/JG

Max. AIR Rating

65kA at 600V AC

Phase Connection

ABC

Instantaneous Trip

Fixed

Terminal Connection

Line/Load Lug

View Full Spec Sheet

Technical Documents

No technical documents available for this product.

Request documentation →

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

EATON Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON HMCPJ250W5L is a molded case circuit breaker from the HMCP series, designed as a motor circuit protector with a 250A/JG frame size. It features a fixed instantaneous trip, a maximum AIR rating of 65kA at 600V AC, and ABC phase connection with line/lug terminal connections.
