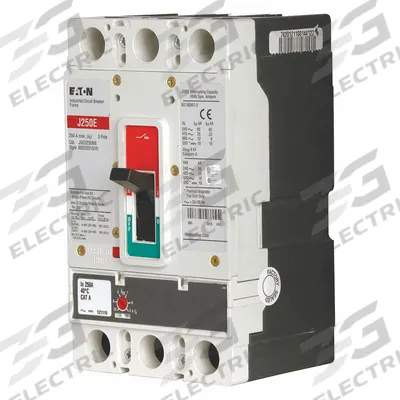

EATON Molded Case Circuit Breaker: 250 A Amps, 25kA at 240V AC, Fixed, ABC, Line/Load Lug - JG-Frame Eaton Molded Case Circuit Breakers
EATONJG-Frame Eaton Molded Case Circuit Breakers

EATON Molded Case Circuit Breaker: 250 A Amps, 25kA at 240V AC, Fixed, ABC, Line/Load Lug

The EATON JG-Frame Molded Case Circuit Breaker (MPN JGE3250FAG) is a 250 A, fixed-mount device rated for 25kA at 240V AC. It features ABC phase protection and line/load lug terminations.

SKU 3G-OTH-127713

Brand
EATON
Item
Molded Case Circuit Breaker: 250 A Amps, 25kA at 240V AC, Fixed, ABC, Line/Load Lug
Category
JG-Frame Eaton Molded Case Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
JGE3250FAG
Type
25kA at 240V AC, Fixed, ABC, Line/Load Lug, Std, JG
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON JG-Frame Molded Case Circuit Breaker (MPN JGE3250FAG) is a 250 A, fixed-mount device rated for 25kA at 240V AC. It features ABC phase protection and line/load lug terminations.

Frequently Asked Questions

What is the Eaton JGE3250FAG molded case circuit breaker used for?

The Eaton JGE3250FAG is a 250 A, fixed-mount molded case circuit breaker used for overcurrent protection in industrial power distribution panels, motor control centers, and switchboards. Its 25kA interrupting rating at 240V AC suits commercial and light industrial applications requiring ABC phase protection.

What are the specifications of the Eaton JGE3250FAG circuit breaker?

The Eaton JGE3250FAG is a JG-frame molded case circuit breaker rated 250 A with a 25kA interrupting capacity at 240V AC. It features fixed mounting, ABC phase protection, and line/load lug terminations. The MPN is JGE3250FAG.

Where to buy the Eaton JGE3250FAG circuit breaker worldwide?

3G Electric supplies the Eaton JGE3250FAG molded case circuit breaker to customers worldwide. We handle full logistics, customs clearance, and delivery to your site. Contact us for a quote and lead time on this Eaton JG-frame breaker.

How to select the correct Eaton molded case circuit breaker for my application?

Select an Eaton molded case circuit breaker by matching the continuous current rating (e.g., 250 A), interrupting capacity (e.g., 25kA at 240V AC), frame type (JG), and termination style (line/load lug) to your system voltage and fault current. Verify phase protection (ABC) matches your load requirements.
