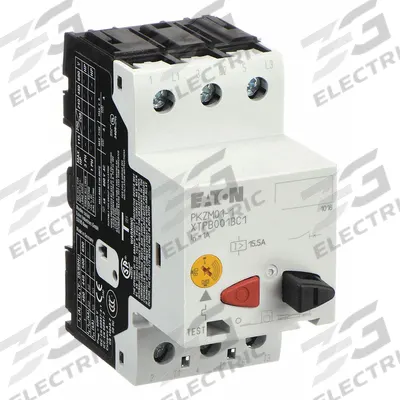

EATON Manual Motor Protector: Non-Reversing, 3 Poles, 1 A, Thermal Protection - Non-Reversing Starters with Thermal Overloads
EATONNon-Reversing Starters with Thermal Overloads

EATON Manual Motor Protector: Non-Reversing, 3 Poles, 1 A, Thermal Protection

The EATON Manual Motor Protector is a non-reversing starter with thermal overloads, featuring a 45mm (B Frame) width and a maximum voltage rating of 600V AC. This 3-pole, 1 A device includes integrated thermal units…

SKU 3G-OTH-40692

Brand
EATON
Item
Manual Motor Protector: Non-Reversing, 3 Poles, 1 A, Thermal Protection
Category
Non-Reversing Starters with Thermal Overloads
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
XTPB001BC1
Type
1 A, Thermal Protection, Push Button
Poles
3
Frame Size (Width)
45mm (B Frame)
Maximum Voltage Rating
600V AC
Thermal Units Required
None (Starter Includes Integrated Thermal Units)
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON Manual Motor Protector is a non-reversing starter with thermal overloads, featuring a 45mm (B Frame) width and a maximum voltage rating of 600V AC. This 3-pole, 1 A device includes integrated thermal units, eliminating the need for separate thermal units. It is operated via a push button and is identified by manufacturer part number XTPB001BC1.

Frequently Asked Questions

What is the EATON XTPB001BC1 manual motor protector used for?

The EATON XTPB001BC1 is a non-reversing manual motor protector used to start and protect single-speed motors in industrial applications. It provides thermal overload protection for motors up to 1 A, making it suitable for conveyors, pumps, and fans where reliable manual control and protection are required.

What are the specifications of the EATON XTPB001BC1 manual motor protector?

The EATON XTPB001BC1 is a 3-pole, non-reversing manual motor protector rated at 1 A with a maximum voltage of 600V AC. It has a 45mm B Frame width and includes integrated thermal units, so no separate thermal units are needed. Operation is via push button, and the part number is XTPB001BC1.

Where to buy the EATON XTPB001BC1 manual motor protector worldwide?

You can source the EATON XTPB001BC1 manual motor protector through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time; we supply genuine EATON components for industrial applications.

How to install the EATON XTPB001BC1 manual motor protector?

Install the EATON XTPB001BC1 by mounting it on a DIN rail or panel, then wiring the motor leads to the output terminals and the supply to the input. Set the integrated thermal unit to match the motor full-load current. Always follow local electrical codes and disconnect power before installation.
