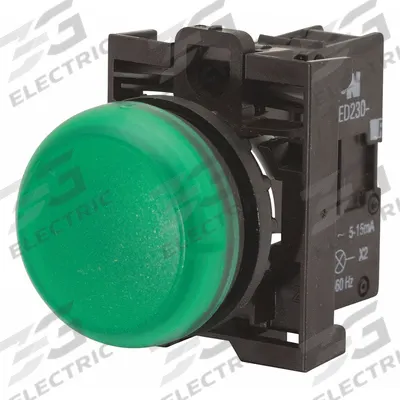

EATON Indicating Light: 22 mm Panel Mounting Size, Green, LED - LED Pilot-Lights
EATONLED Pilot-Lights

EATON Indicating Light: 22 mm Panel Mounting Size, Green, LED

The EATON M22-L-G-G is a green LED pilot light from the M22 series, designed for 22 mm panel mounting. It operates with a maximum supply voltage rating of 30 V AC/DC and does not include a push-to-test feature. This…

SKU 3G-OTH-33010

Brand
EATON
Item
Indicating Light: 22 mm Panel Mounting Size, Green, LED
Category
LED Pilot-Lights
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
M22-L-G-G
Series
M22
Type
Green, LED
Includes Push-To-Test
No Push-To-Test Included
AC/DC Max Volt Rating (Supply)
30 V
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON M22-L-G-G is a green LED pilot light from the M22 series, designed for 22 mm panel mounting. It operates with a maximum supply voltage rating of 30 V AC/DC and does not include a push-to-test feature. This indicating light provides visual status indication in industrial control panels.

Frequently Asked Questions

What is the EATON M22-L-G-G indicating light used for?

The EATON M22-L-G-G is a green LED pilot light used for visual status indication in industrial control panels. It is commonly applied in machinery, automation systems, and process control to signal power-on, run, or safe conditions. Its 22 mm panel mounting size fits standard cutouts in operator stations and enclosures.

What are the specifications of the EATON M22-L-G-G?

The EATON M22-L-G-G is a green LED pilot light from the M22 series. It has a 22 mm panel mounting size and a maximum supply voltage rating of 30 V AC/DC. It does not include a push-to-test feature. The manufacturer part number is M22-L-G-G.

Where to buy the EATON M22-L-G-G in worldwide?

You can source the EATON M22-L-G-G through 3G Electric, a global industrial equipment distributor established in 1990. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time; we supply genuine EATON components for industrial applications.

How to install the EATON M22-L-G-G pilot light?

To install the EATON M22-L-G-G, mount it into a 22 mm panel cutout and secure it with the provided locking ring. Connect the supply wires to the LED terminals, observing polarity for DC operation. Ensure the supply voltage does not exceed 30 V AC/DC. Follow standard industrial wiring practices and consult the product datasheet for torque specifications.
