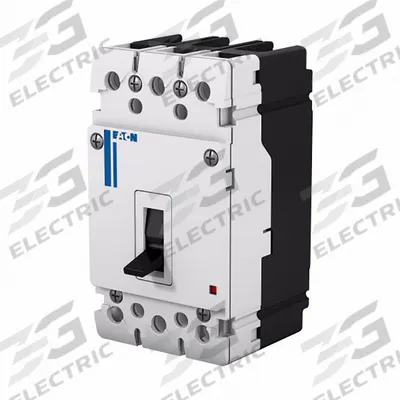

EATON Circuit Breaker: 100 A Amps, 65 kA at 480V AC, Fixed, ABC, Std Line and Load Lugs - Power Defense Molded Case Circuit Breakers
EATONPower Defense Molded Case Circuit Breakers

EATON Circuit Breaker: 100 A Amps, 65 kA at 480V AC, Fixed, ABC, Std Line and Load Lugs

The EATON Power Defense Molded Case Circuit Breaker (SKU 61HT65, MPN PDG13M0100TFFJ) is a 100 A rated device with a 125A/Frame 1 frame size. It provides a maximum AIR rating of 65 kA at 480V AC, features a fixed…

SKU 3G-OTH-23763

Brand
EATON
Item
Circuit Breaker: 100 A Amps, 65 kA at 480V AC, Fixed, ABC, Std Line and Load Lugs
Category
Power Defense Molded Case Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
PDG13M0100TFFJ
Type
65 kA at 480V AC, Fixed, ABC, Std Line and Load Lugs, Std
Frame Size
125A/Frame 1
Max. AIR Rating
65 kA at 480V AC
Phase Connection
ABC
Instantaneous Trip
Fixed
Terminal Connection
Standard Line and Load Lugs
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON Power Defense Molded Case Circuit Breaker (SKU 61HT65, MPN PDG13M0100TFFJ) is a 100 A rated device with a 125A/Frame 1 frame size. It provides a maximum AIR rating of 65 kA at 480V AC, features a fixed instantaneous trip, and uses ABC phase connection with standard line and load lugs.

Frequently Asked Questions

What is the EATON Power Defense molded case circuit breaker used for?

The EATON Power Defense molded case circuit breaker (MPN PDG13M0100TFFJ) protects industrial electrical circuits from overloads and short circuits. It is rated 100 A with a 65 kA interrupting capacity at 480V AC, making it suitable for commercial and industrial power distribution panels and motor control centers.

What are the specifications of the EATON PDG13M0100TFFJ circuit breaker?

This EATON circuit breaker has a 100 A rating, 125A/Frame 1 frame size, and a maximum AIR rating of 65 kA at 480V AC. It features a fixed instantaneous trip, ABC phase connection, and standard line and load lugs. The terminal connection is standard line and load lugs.

Where to buy the EATON PDG13M0100TFFJ circuit breaker worldwide?

3G Electric supplies the EATON Power Defense molded case circuit breaker (PDG13M0100TFFJ) to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your site. Contact us for pricing and lead time on this Eaton breaker.

How to select the correct EATON molded case circuit breaker for an application?

To select the correct EATON Power Defense breaker, match the continuous current rating (100 A), interrupting capacity (65 kA at 480V AC), and frame size (125A/Frame 1) to your system's fault current and load requirements. Verify phase connection (ABC) and terminal type (standard lugs) match your panel.
