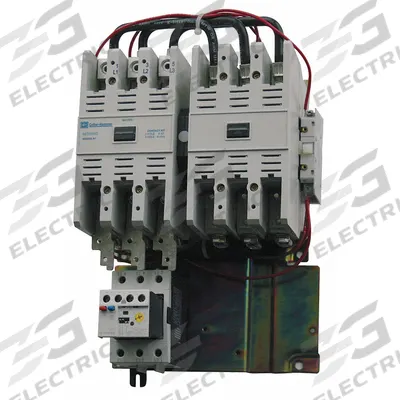

EATON Magnetic Motor Starter: Reversing, 3 Poles, NEMA Size 3, 90 A - Reversing Starters with Electronic Overloads
EATONReversing Starters with Electronic Overloads

EATON Magnetic Motor Starter: Reversing, 3 Poles, NEMA Size 3, 90 A

The EATON NEMA Magnetic Motor Starter: Reversing (SKU 6HGT4, MPN AN59KN0B5E100) is a three-phase reversing starter with electronic overloads, NEMA Size 3, rated 90 A, and a 220/240V AC coil. It includes a 1NO…

SKU 3G-OTH-43586

Brand
EATON
Item
Magnetic Motor Starter: Reversing, 3 Poles, NEMA Size 3, 90 A
Category
Reversing Starters with Electronic Overloads
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
AN59KN0B5E100
Type
NEMA Size 3, 90 A
Phase
Three
Poles
3
AC Coil
240V
Operator
None
Coil Voltage
220/240V AC
Operator Controls
None
Signaling Features
Pilot Light
Auxiliary Contact Form
1NO
Thermal Units Required
None (Not Applicable to Electronic Overloads)
Auxiliary Contacts Included
1NO
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON NEMA Magnetic Motor Starter: Reversing (SKU 6HGT4, MPN AN59KN0B5E100) is a three-phase reversing starter with electronic overloads, NEMA Size 3, rated 90 A, and a 220/240V AC coil. It includes a 1NO auxiliary contact and a pilot light for signaling, with no operator or operator controls.

Frequently Asked Questions

What is the EATON NEMA Magnetic Motor Starter used for?

The EATON NEMA Magnetic Motor Starter is used to start, stop, and reverse three-phase motors in industrial applications such as conveyors, pumps, and fans. Its reversing capability allows motor direction change without external contactors, and the electronic overload protects against current overloads.

What are the specifications of the EATON AN59KN0B5E100 motor starter?

The EATON AN59KN0B5E100 is a NEMA Size 3 reversing starter rated 90 A with a 220/240V AC coil. It includes a 1NO auxiliary contact and a pilot light for signaling. It uses electronic overloads, so no thermal units are required. It is a three-phase unit with no operator or operator controls.

Where to buy the EATON AN59KN0B5E100 motor starter worldwide?

You can source the EATON AN59KN0B5E100 motor starter through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this reversing starter.

How to select the correct overload for the EATON NEMA Size 3 starter?

For the EATON NEMA Size 3 reversing starter with electronic overloads, no separate thermal units are needed. The electronic overload is integrated and adjustable to match motor full-load current. Set the dial to the motor's nameplate amperage, typically within the overload's range, for proper protection.
