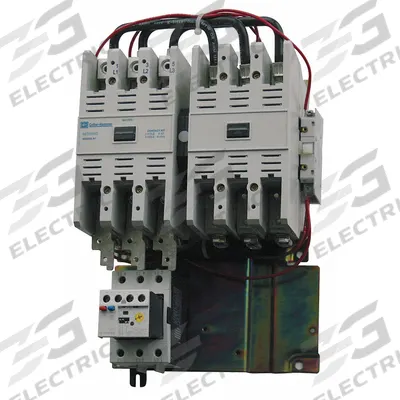

EATON Magnetic Motor Starter: Reversing, 3 Poles, NEMA Size 3, 90 A - Reversing Starters with Electronic Overloads
EATONReversing Starters with Electronic Overloads

EATON Magnetic Motor Starter: Reversing, 3 Poles, NEMA Size 3, 90 A

The EATON NEMA Magnetic Motor Starter: Reversing (MPN AN59KN0T5E100) is a three-phase reversing starter with an electronic overload, rated 90 A at NEMA Size 3. It features a 24V AC coil voltage, a 1NO auxiliary…

SKU 3G-OTH-41890

Brand
EATON
Item
Magnetic Motor Starter: Reversing, 3 Poles, NEMA Size 3, 90 A
Category
Reversing Starters with Electronic Overloads
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
AN59KN0T5E100
Type
NEMA Size 3, 90 A
Phase
Three
Poles
3
AC Coil
24V
Operator
None
Coil Voltage
24V AC
Operator Controls
None
Signaling Features
Pilot Light
Auxiliary Contact Form
1NO
Thermal Units Required
None (Not Applicable to Electronic Overloads)
Auxiliary Contacts Included
1NO
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON NEMA Magnetic Motor Starter: Reversing (MPN AN59KN0T5E100) is a three-phase reversing starter with an electronic overload, rated 90 A at NEMA Size 3. It features a 24V AC coil voltage, a 1NO auxiliary contact form, and a pilot light signaling feature. This unit includes 1NO auxiliary contacts and requires no thermal units, as they are not applicable to electronic overloads.

Frequently Asked Questions

What is the EATON NEMA Magnetic Motor Starter AN59KN0T5E100 used for?

This reversing starter controls three-phase motors in industrial applications requiring forward/reverse operation, such as conveyors, hoists, and pumps. It includes an electronic overload for motor protection and a pilot light for status indication.

What are the specifications of the EATON AN59KN0T5E100 reversing starter?

The EATON AN59KN0T5E100 is a NEMA Size 3 reversing starter rated 90 A with a 24V AC coil. It has three poles, a 1NO auxiliary contact, and an electronic overload that requires no thermal units. It includes a pilot light signaling feature.

Where to buy the EATON AN59KN0T5E100 worldwide?

3G Electric supplies the EATON AN59KN0T5E100 reversing starter worldwide. As a global industrial distributor, we handle full logistics, customs clearance, and delivery to your site. Contact us for availability and lead time.

How to select the correct EATON reversing starter for a motor?

Match the starter's NEMA size and current rating to your motor's full-load amps and voltage. For the AN59KN0T5E100, ensure your motor is three-phase, 90 A or less, and that your control circuit provides 24V AC. The electronic overload adjusts without thermal units.
