EATON Overload Relay: Electronic Protection, 3 Poles, NEMA Size 0/00/1/1-3/4/2/2-1/2/3 - NEMA Electronic Overload Relays
EATONNEMA Electronic Overload Relays

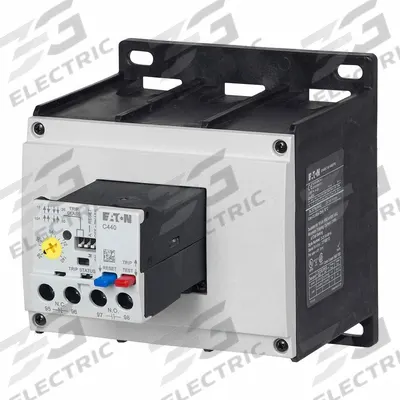

EATON Overload Relay: Electronic Protection, 3 Poles, NEMA Size 0/00/1/1-3/4/2/2-1/2/3

The EATON Overload Relay: Electronic Protection (MPN C440A1A020SAX) is a three-phase NEMA electronic overload relay with a maximum voltage rating of 690V AC and a current range of 4 A to 20 A. It features screw clamp…

SKU 3G-OTH-41412

Brand
EATON
Item
Overload Relay: Electronic Protection, 3 Poles, NEMA Size 0/00/1/1-3/4/2/2-1/2/3
Category
NEMA Electronic Overload Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
C440A1A020SAX
Type
NEMA Size 0/00/1/1-3/4/2/2-1/2/3, 4 A – 20 A
Phase
Three
Poles
3
Maximum Voltage Rating
690V AC
Thermal Units Required
Not Applicable to Electronic Type Overload Relays
Terminal Connection Type
Screw Clamp Terminals
Compatible Contactor Series
Freedom
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON Overload Relay: Electronic Protection (MPN C440A1A020SAX) is a three-phase NEMA electronic overload relay with a maximum voltage rating of 690V AC and a current range of 4 A to 20 A. It features screw clamp terminals and is compatible with the Freedom contactor series. Thermal units are not applicable to this electronic type overload relay.

Frequently Asked Questions

What is the EATON C440A1A020SAX overload relay used for?

The EATON C440A1A020SAX is a three-phase NEMA electronic overload relay used to protect motors from overcurrent, phase loss, and other electrical faults. It is commonly applied in industrial motor control centers and panel builds where reliable, adjustable protection is required without thermal units.

What are the specifications of the EATON C440A1A020SAX overload relay?

The EATON C440A1A020SAX is a three-phase electronic overload relay rated for 4 A to 20 A with a maximum voltage of 690V AC. It uses screw clamp terminals and is compatible with the Freedom contactor series. Thermal units are not required for this electronic type.

Where to buy the EATON C440A1A020SAX overload relay worldwide?

3G Electric supplies the EATON C440A1A020SAX overload relay worldwide. As a global industrial equipment distributor since 1990, we handle full logistics, customs clearance, and delivery to your site. Contact us for availability and lead time.

How to select the correct EATON overload relay for a motor?

To select the correct EATON overload relay, match the full-load current of your motor to the relay's adjustable current range (4 A to 20 A for the C440A1A020SAX). Ensure the relay is compatible with your contactor series—this unit works with Freedom contactors. Always verify voltage rating (690V AC max) and phase (three-phase).
