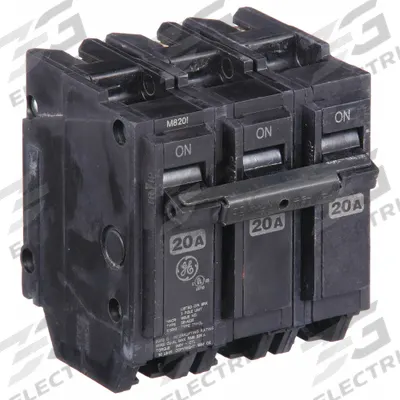

GE Miniature Circuit Breaker: THHQL, 20 A, 120/240V AC, Three Phase, 22kA at 120/240V AC - THQP, THQL & THHQL Series, Plug-In GE Miniature Circuit Breakers
GETHQP, THQL & THHQL Series, Plug-In GE Miniature Circuit Breakers

GE Miniature Circuit Breaker: THHQL, 20 A, 120/240V AC, Three Phase, 22kA at 120/240V AC

The GE THHQL is a three-phase, 20 A miniature circuit breaker from the THQP, THQL & THHQL Series, rated for 120/240V AC with a maximum AIR rating of 22kA at 120/240V AC. This plug-in breaker is designed for use with…

SKU 3G-OTH-22759

Brand
GE
Item
Miniature Circuit Breaker: THHQL, 20 A, 120/240V AC, Three Phase, 22kA at 120/240V AC
Category
THQP, THQL & THHQL Series, Plug-In GE Miniature Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

GE
Manufacturer Part Number
THHQL32020
Type
20 A, Three Phase, 22kA at 120/240V AC
AC
120/240V
Amps
20 A
Phase
Three
Poles
3
For Use With
Power Mark Gold Load Centers and AQ Lighting Panels
Max. AIR Rating
22kA at 120/240V AC
AC Voltage Rating
120/240V AC
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

GE Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The GE THHQL is a three-phase, 20 A miniature circuit breaker from the THQP, THQL & THHQL Series, rated for 120/240V AC with a maximum AIR rating of 22kA at 120/240V AC. This plug-in breaker is designed for use with Power Mark Gold Load Centers and AQ Lighting Panels, featuring three poles (MPN THHQL32020).

Frequently Asked Questions

What is the GE THHQL32020 miniature circuit breaker used for?

The GE THHQL32020 is a three-pole, 20 A miniature circuit breaker rated for 120/240V AC with a 22kA interrupting capacity. It is designed for overcurrent protection in Power Mark Gold Load Centers and AQ Lighting Panels, commonly used in commercial and industrial electrical distribution systems.

What are the specifications of the GE THHQL32020 circuit breaker?

The GE THHQL32020 is a 20 A, three-phase, plug-in miniature circuit breaker with an AC voltage rating of 120/240V AC and a maximum AIR rating of 22kA at 120/240V AC. It has three poles and is compatible with Power Mark Gold Load Centers and AQ Lighting Panels.

Where to buy the GE THHQL32020 circuit breaker worldwide?

3G Electric supplies the GE THHQL32020 miniature circuit breaker to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your location. Contact us for pricing and lead time on this three-pole, 20 A breaker.

How to install the GE THHQL32020 plug-in circuit breaker?

Installation of the GE THHQL32020 requires the breaker to be plugged into a compatible Power Mark Gold Load Center or AQ Lighting Panel bus bar. Ensure the panel is de-energized, then align the breaker's plug-in clips with the bus stabs and press firmly until seated. Follow all local electrical codes.
