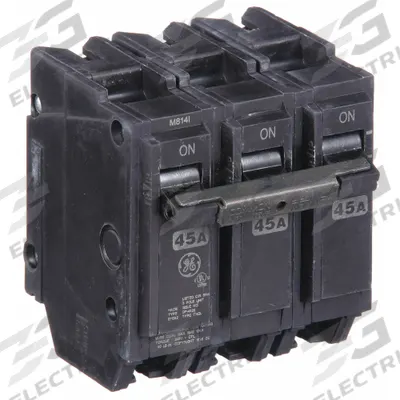

GE Miniature Circuit Breaker: THQL, 45 A, 120/240V AC, Three Phase, 10kA at 120/240V AC - THQP, THQL & THHQL Series, Plug-In GE Miniature Circuit Breakers
GETHQP, THQL & THHQL Series, Plug-In GE Miniature Circuit Breakers

GE Miniature Circuit Breaker: THQL, 45 A, 120/240V AC, Three Phase, 10kA at 120/240V AC

The GE THQL32045 is a 45 A, three-phase miniature circuit breaker from the THQL series, rated for 120/240V AC with a maximum AIR rating of 10kA at 120/240V AC. It is designed for use with Power Mark Gold Load Centers…

SKU 3G-OTH-22610

Brand
GE
Item
Miniature Circuit Breaker: THQL, 45 A, 120/240V AC, Three Phase, 10kA at 120/240V AC
Category
THQP, THQL & THHQL Series, Plug-In GE Miniature Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

GE
Manufacturer Part Number
THQL32045
Type
45 A, Three Phase, 10kA at 120/240V AC, Std
AC
120/240V
Amps
45 A
Phase
Three
For Use With
Power Mark Gold Load Centers and AQ Lighting Panels
Max. AIR Rating
10kA at 120/240V AC
AC Voltage Rating
120/240V AC
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

GE Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The GE THQL32045 is a 45 A, three-phase miniature circuit breaker from the THQL series, rated for 120/240V AC with a maximum AIR rating of 10kA at 120/240V AC. It is designed for use with Power Mark Gold Load Centers and AQ Lighting Panels.

Frequently Asked Questions

What is the GE THQL32045 miniature circuit breaker used for?

The GE THQL32045 is a 45 A, three-phase miniature circuit breaker used for overcurrent protection in Power Mark Gold Load Centers and AQ Lighting Panels. It is rated for 120/240V AC with a 10kA interrupting rating, making it suitable for residential and light commercial electrical distribution systems.

What are the specifications of the GE THQL32045 circuit breaker?

The GE THQL32045 is a 45 A, three-phase, plug-in miniature circuit breaker from the THQL series. It has an AC voltage rating of 120/240V AC and a maximum AIR rating of 10kA at 120/240V AC. It is designed for use with Power Mark Gold Load Centers and AQ Lighting Panels.

Where to buy the GE THQL32045 circuit breaker worldwide?

You can source the GE THQL32045 circuit breaker through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time; we supply genuine GE components for electrical distribution systems.

How to install the GE THQL32045 circuit breaker?

To install the GE THQL32045, ensure the panel is de-energized. Align the breaker's plug-in base with the bus bar in a Power Mark Gold Load Center or AQ Lighting Panel, then press firmly until it snaps into place. Verify the breaker is rated for 120/240V AC and 45 A before energizing the circuit.
