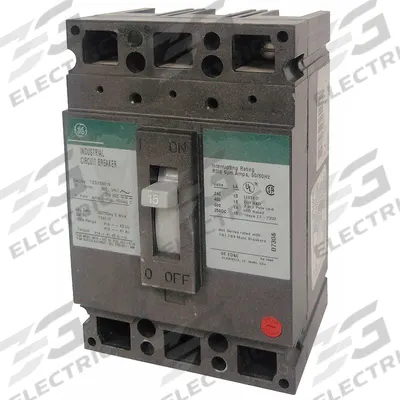

GE Molded Case Circuit Breaker: 20 A Amps, 14kA at 277V AC, Fixed, Line/Load Lug - TED-, TEHD-Frame GE Molded Case Circuit Breakers
GETED-, TEHD-Frame GE Molded Case Circuit Breakers

GE Molded Case Circuit Breaker: 20 A Amps, 14kA at 277V AC, Fixed, Line/Load Lug

The GE Molded Case Circuit Breaker (SKU 6AXN5) is a TED-/TEHD-frame molded case circuit breaker rated for 20 A. It features a THED series, a maximum AIR rating of 14kA at 277V AC, fixed instantaneous trip, and…

SKU 3G-OTH-21048

Brand
GE
Item
Molded Case Circuit Breaker: 20 A Amps, 14kA at 277V AC, Fixed, Line/Load Lug
Category
TED-, TEHD-Frame GE Molded Case Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

GE
Manufacturer Part Number
THED136020WL
Series
THED
Type
14kA at 277V AC, Fixed, Line/Load Lug, ABC
Max. AIR Rating
14kA at 277V AC
Phase Connection
ABC
Instantaneous Trip
Fixed
Terminal Connection
Line/Load Lug
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

GE Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The GE Molded Case Circuit Breaker (SKU 6AXN5) is a TED-/TEHD-frame molded case circuit breaker rated for 20 A. It features a THED series, a maximum AIR rating of 14kA at 277V AC, fixed instantaneous trip, and line/load lug terminal connections with ABC phase connection (MPN THED136020WL).

Frequently Asked Questions

What is the GE THED136020WL molded case circuit breaker used for?

The GE THED136020WL is a 20 A molded case circuit breaker used for overcurrent protection in industrial and commercial electrical distribution systems. It is suitable for branch circuit protection in panelboards, switchboards, and motor control centers, providing reliable short-circuit and overload interruption.

What are the specifications of the GE THED136020WL circuit breaker?

The GE THED136020WL is a THED-series molded case circuit breaker rated 20 A with a maximum AIR rating of 14kA at 277V AC. It features fixed instantaneous trip, line/load lug terminals, and ABC phase connection. It is a TED-/TEHD-frame unit with part number THED136020WL.

Where to buy the GE THED136020WL circuit breaker worldwide?

You can source the GE THED136020WL circuit breaker through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this GE molded case circuit breaker.

How to select the correct GE molded case circuit breaker for an application?

To select the correct GE molded case circuit breaker, verify the continuous current rating (e.g., 20 A), voltage rating (277V AC), and interrupting capacity (14kA). Ensure the trip type (fixed instantaneous) and terminal connections (line/load lug) match your panel requirements. Consult the GE THED series specifications for coordination.
