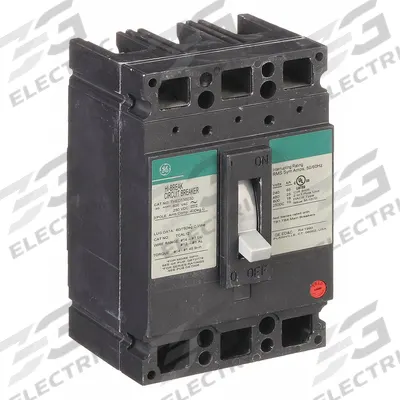

GE Molded Case Circuit Breaker: 30 A Amps, 14kA at 277V AC, Fixed, Line/Load Lug - TED-, TEHD-Frame GE Molded Case Circuit Breakers
GETED-, TEHD-Frame GE Molded Case Circuit Breakers

GE Molded Case Circuit Breaker: 30 A Amps, 14kA at 277V AC, Fixed, Line/Load Lug

The GE Molded Case Circuit Breaker (SKU 6AXN7) is a TED-/TEHD-frame molded case circuit breaker rated for 30 A. It features a fixed instantaneous trip, line/load lug terminal connections, and ABC phase connection…

SKU 3G-OTH-21131

Brand
GE
Item
Molded Case Circuit Breaker: 30 A Amps, 14kA at 277V AC, Fixed, Line/Load Lug
Category
TED-, TEHD-Frame GE Molded Case Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

GE
Manufacturer Part Number
THED136030WL
Series
THED
Type
14kA at 277V AC, Fixed, Line/Load Lug, ABC
Max. AIR Rating
14kA at 277V AC
Phase Connection
ABC
Instantaneous Trip
Fixed
Terminal Connection
Line/Load Lug
