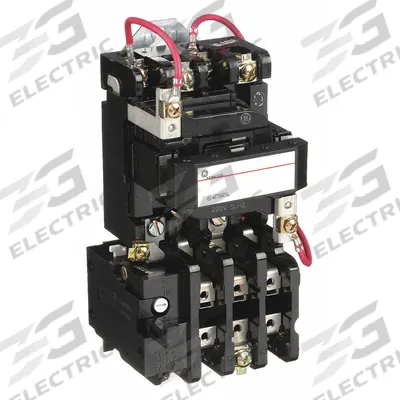

GE Magnetic Motor Starter: Non-Reversing, 3 Poles, NEMA Size 00, 9 A - Non-Reversing Starters with Thermal Overloads
GENon-Reversing Starters with Thermal Overloads

GE Magnetic Motor Starter: Non-Reversing, 3 Poles, NEMA Size 00, 9 A

The GE Magnetic Motor Starter: Non-Reversing (SKU 6VDK7, MPN CR306A004) is a three-pole, NEMA Size 00 non-reversing starter with thermal overloads, rated for 9 A and a 480V AC coil. It operates on three-phase power…

SKU 3G-OTH-42224

Brand
GE
Item
Magnetic Motor Starter: Non-Reversing, 3 Poles, NEMA Size 00, 9 A
Category
Non-Reversing Starters with Thermal Overloads
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

GE
Manufacturer Part Number
CR306A004
Type
NEMA Size 00, 9 A
Phase
Three
Poles
3
AC Coil
480V
Coil Voltage
480V AC
Signaling Features
Pilot Light
Thermal Units Required
3 Melting Alloy Units (Not Included)
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

GE Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The GE Magnetic Motor Starter: Non-Reversing (SKU 6VDK7, MPN CR306A004) is a three-pole, NEMA Size 00 non-reversing starter with thermal overloads, rated for 9 A and a 480V AC coil. It operates on three-phase power and includes a pilot light for signaling, but requires three melting alloy thermal units (not included) for overload protection.

Frequently Asked Questions

What is the GE CR306A004 magnetic motor starter used for?

The GE CR306A004 is a non-reversing magnetic motor starter used to start and stop three-phase motors in industrial applications such as conveyors, pumps, and fans. It provides overload protection when three melting alloy thermal units (sold separately) are installed.

What are the specifications of the GE CR306A004 magnetic motor starter?

The GE CR306A004 is a NEMA Size 00, three-pole, non-reversing starter rated for 9 A with a 480V AC coil. It operates on three-phase power, includes a pilot light for signaling, and requires three melting alloy thermal units (not included) for overload protection.

Where to buy the GE CR306A004 magnetic motor starter worldwide?

You can source the GE CR306A004 magnetic motor starter worldwide through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time.

How to select thermal units for the GE CR306A004 starter?

To select thermal units for the GE CR306A004 starter, match the melting alloy heater element to the full-load current of your motor. GE provides selection tables based on motor horsepower and voltage. Install three units (one per phase) for proper overload protection.
