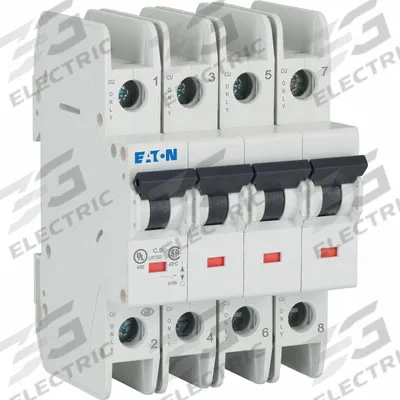

IEC Miniature Cct Breaker, 16 A - C-Curve, 4-Pole UL489 DIN Rail-Mount Miniature Circuit Breakers
IECC-Curve, 4-Pole UL489 DIN Rail-Mount Miniature Circuit Breakers

IEC Miniature Cct Breaker, 16 A

The IEC Miniature Cct Breaker, 16 A, 4 in (MPN FAZ-C16/4-NA) is a C-Curve, 4-Pole UL489 DIN Rail-Mount Miniature Circuit Breaker from EATON. It is rated for 480V AC with an interrupting capacity of 10 kA at 277/480V…

SKU 3G-OTH-129708

Brand
IEC
Item
Miniature Cct Breaker, 16 A
Category
C-Curve, 4-Pole UL489 DIN Rail-Mount Miniature Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

IEC
Manufacturer Part Number
FAZ-C16/4-NA
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

IEC Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The IEC Miniature Cct Breaker, 16 A, 4 in (MPN FAZ-C16/4-NA) is a C-Curve, 4-Pole UL489 DIN Rail-Mount Miniature Circuit Breaker from EATON. It is rated for 480V AC with an interrupting capacity of 10 kA at 277/480V AC and features screw terminals.

Frequently Asked Questions

What is the Eaton FAZ-C16/4-NA miniature circuit breaker used for?

The Eaton FAZ-C16/4-NA is a 4-pole, C-curve miniature circuit breaker rated for 480V AC. It protects branch circuits in industrial control panels, motor control centers, and distribution boards against overloads and short circuits, with a 10 kA interrupting capacity at 277/480V AC.

What are the specifications of the Eaton FAZ-C16/4-NA?

The Eaton FAZ-C16/4-NA is a 16 A, 4-pole, C-curve miniature circuit breaker with a 480V AC rating and 10 kA interrupting capacity at 277/480V AC. It features screw terminals and is UL489 listed for DIN-rail mounting, suitable for industrial applications.

Where to buy the Eaton FAZ-C16/4-NA worldwide?

3G Electric supplies the Eaton FAZ-C16/4-NA miniature circuit breaker to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your site. Contact us for pricing and lead time on this UL489 rated breaker.

How to install the Eaton FAZ-C16/4-NA on a DIN rail?

To install the Eaton FAZ-C16/4-NA, snap it onto a standard 35 mm DIN rail by engaging the top clip and pressing down until it locks. Use a screwdriver to tighten the screw terminals to the recommended torque. Ensure the circuit is de-energized before installation.

Used in

Common applications for IEC
Industrial panelboards — IEC FAZ-C series 4-pole miniature circuit breakers for branch circuit protection in 480 V AC distribution
Motor control centers — IEC FAZ-C series MCBs for overcurrent protection of motor circuits in C-curve applications
Heating equipment — IEC GFP series ground fault protectors (e.g., 25 A, 260 mA) for personnel protection in electric heaters
Pump systems — IEC GFP series (e.g., 63 A, 26 mA) for ground fault protection in industrial pump controls
Commercial building electrical rooms — IEC FAZ-C series breakers for lighting and receptacle circuits in 277/480 V AC systems
Machine tool disconnects — IEC FAZ-C series MCBs as supplementary protection in control panels for manufacturing equipment
