IFM Circular Connector: C Coded, 3 Socket, M12 Female Thread, IP67, Screw Terminals - Field-Wireable Industrial M12 Circular Connectors
IFMField-Wireable Industrial M12 Circular Connectors

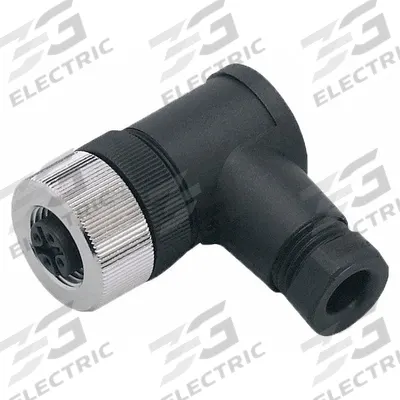

IFM Circular Connector: C Coded, 3 Socket, M12 Female Thread, IP67, Screw Terminals

The IFM M12 Circular Connector (MPN E11764) is a field-wireable industrial M12 circular connector with C coding for AC actuators and sensors. It features a 90° angle socket with a female thread, screw terminals, and…

SKU 3G-OTH-10727

Brand
IFM
Item
Circular Connector: C Coded, 3 Socket, M12 Female Thread, IP67, Screw Terminals
Category
Field-Wireable Industrial M12 Circular Connectors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

IFM
Manufacturer Part Number
E11764
Type
M12 Female Thread, IP67, Screw Terminals
Angle
90°
Coding
C
Socket
3
IP Rating
IP67
Application
AC Power
Thread Size
M12
Wiring Type
Screw Terminals
Mounting Type
Front Mounting
Mounting Style
Female Thread
Voltage Rating
250V AC
Connection Type
Gold-Plated Contacts
Housing Material
Nylon
Connector Body Type
Socket
Connector Application
C-Coded for AC Actuators & Sensors
Connector Orientation
90° Angle
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

IFM Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The IFM M12 Circular Connector (MPN E11764) is a field-wireable industrial M12 circular connector with C coding for AC actuators and sensors. It features a 90° angle socket with a female thread, screw terminals, and gold-plated contacts, rated at 250V AC with IP67 protection. The connector body is made of nylon, supports front mounting, and is designed for AC power applications.

Frequently Asked Questions

What is the IFM M12 Circular Connector E11764 used for?

The IFM M12 Circular Connector E11764 is a field-wireable socket with C coding, designed for AC actuators and sensors in industrial automation. Its 90° angle and IP67 rating suit harsh environments, while screw terminals enable quick field wiring without special tools.

What are the specifications of the IFM M12 Circular Connector E11764?

The IFM E11764 is a C-coded M12 socket with a female thread, rated 250V AC. It features gold-plated contacts, screw terminals, a nylon housing, and IP67 protection. The 90° angle connector supports front mounting for space-constrained panels.

Where to buy the IFM M12 Circular Connector E11764 worldwide?

3G Electric supplies the IFM M12 Circular Connector E11764 worldwide. As a global industrial distributor, we handle full logistics, customs clearance, and delivery to your site. Contact us for availability and lead time; we source and deliver this IFM connector globally.

How to install the IFM M12 Circular Connector E11764?

To install the IFM E11764, strip the cable, insert wires into screw terminals, and tighten. Mount the connector via the female thread to a panel or device. Ensure the O-ring seals properly for IP67 protection. Use a torque wrench to avoid over-tightening the M12 thread.
