MIDWEST INSTRUMENT 3-Color Differential Pressure Indicator: 1,000 psig Max - Differential Pressure Indicators with Switch
MIDWEST INSTRUMENTDifferential Pressure Indicators with Switch

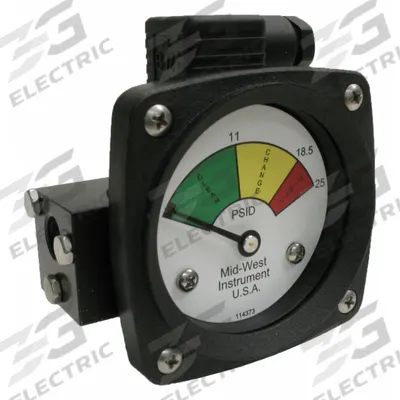

MIDWEST INSTRUMENT 3-Color Differential Pressure Indicator: 1,000 psig Max

The MIDWEST INSTRUMENT 3-Color Differential Pressure Indicator (MPN 522A-025-LE) is a differential pressure indicator with switch, featuring a maximum static pressure of 1,000 psig. It offers ±5% of Full Scale…

SKU 3G-OTH-174341

Brand
MIDWEST INSTRUMENT
Item
3-Color Differential Pressure Indicator: 1,000 psig Max
Category
Differential Pressure Indicators with Switch
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

MIDWEST INSTRUMENT
Manufacturer Part Number
522A-025-LE
Type
Static Pressure, 522
Accuracy
±5% of Full Scale
Sensor Material
Buna-N
Housing Material
Aluminum
Transition Points
0 psid to 11 psid (Green) / 11 psid to 18.5 psid (Yellow) / 18.5 psid to 25 psid (Red)
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

MIDWEST INSTRUMENT Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The MIDWEST INSTRUMENT 3-Color Differential Pressure Indicator (MPN 522A-025-LE) is a differential pressure indicator with switch, featuring a maximum static pressure of 1,000 psig. It offers ±5% of Full Scale accuracy, with a Buna-N sensor and aluminum housing. The indicator uses three color-coded transition points: green from 0 psid to 11 psid, yellow from 11 psid to 18.5 psid, and red from 18.5 psid to 25 psid.

Frequently Asked Questions

What is the MIDWEST INSTRUMENT 3-Color Differential Pressure Indicator used for?

This indicator is used to monitor differential pressure in industrial fluid systems, providing a visual three-color status (green, yellow, red) across a 0–25 psid range. It is commonly applied in filtration, pump, and hydraulic systems where operators need quick, at-a-glance condition alerts.

What are the specifications of the MIDWEST INSTRUMENT 522A-025-LE?

The MIDWEST INSTRUMENT 522A-025-LE has a maximum static pressure of 1,000 psig, accuracy of ±5% of Full Scale, a Buna-N sensor, and an aluminum housing. Its transition points are 0–11 psid (green), 11–18.5 psid (yellow), and 18.5–25 psid (red).

Where to buy the MIDWEST INSTRUMENT 522A-025-LE worldwide?

3G Electric supplies the MIDWEST INSTRUMENT 522A-025-LE worldwide. As a global industrial equipment distributor since 1990, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time.

How to install the MIDWEST INSTRUMENT 3-Color Differential Pressure Indicator?

Install the indicator in a clean, dry location within the system's rated static pressure. Use compatible fittings for the Buna-N sensor and aluminum housing. Follow standard piping practices to avoid over-torquing. Calibrate per the manufacturer's guidelines to ensure accurate ±5% readings.

Used in

Common applications for MIDWEST INSTRUMENT
Filter monitoring in industrial water treatment — MIDWEST INSTRUMENT 522 series 3-color differential pressure indicators
Flow measurement in chemical processing — MIDWEST INSTRUMENT Series 120 piston-type differential pressure gauges
Liquid level indication in oil and gas storage tanks — MIDWEST INSTRUMENT Model 142 diaphragm-type differential pressure gauges
HVAC system filter condition monitoring — MIDWEST INSTRUMENT Series 130 differential pressure gauges with glass-reinforced plastic housing
Pump differential pressure monitoring in industrial plants — MIDWEST INSTRUMENT 522 series indicators with switch for alarm output
