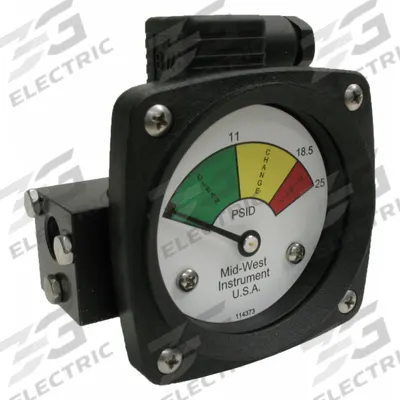

MIDWEST INSTRUMENT 3-Color Differential Pressure Indicator: 1,000 psig Max - Differential Pressure Indicators with Switch
MIDWEST INSTRUMENTDifferential Pressure Indicators with Switch

MIDWEST INSTRUMENT 3-Color Differential Pressure Indicator: 1,000 psig Max

The MIDWEST INSTRUMENT 3-Color Differential Pressure Indicator (MPN 522A-025V-LE) is a differential pressure indicator with switch, featuring a 1,000 psig maximum static pressure. It offers ±5% of full scale…

SKU 3G-OTH-174346

Brand
MIDWEST INSTRUMENT
Item
3-Color Differential Pressure Indicator: 1,000 psig Max
Category
Differential Pressure Indicators with Switch
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

MIDWEST INSTRUMENT
Manufacturer Part Number
522A-025V-LE
Type
Static Pressure, 522
Accuracy
±5% of Full Scale
Sensor Material
Viton
Housing Material
Aluminum
Transition Points
0 psid to 11 psid (Green) / 11 psid to 18.5 psid (Yellow) / 18.5 psid to 25 psid (Red)
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

MIDWEST INSTRUMENT Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The MIDWEST INSTRUMENT 3-Color Differential Pressure Indicator (MPN 522A-025V-LE) is a differential pressure indicator with switch, featuring a 1,000 psig maximum static pressure. It offers ±5% of full scale accuracy, with a Viton sensor and aluminum housing. The indicator uses three color-coded transition points: green from 0 psid to 11 psid, yellow from 11 psid to 18.5 psid, and red from 18.5 psid to 25 psid.

Frequently Asked Questions

What is the MIDWEST INSTRUMENT 3-Color Differential Pressure Indicator used for?

This indicator is used to monitor differential pressure in industrial fluid systems, providing a visual status via three color zones. It is commonly applied in filtration, pump, and pipeline monitoring where operators need quick, at-a-glance pressure condition feedback.

What are the specifications of the MIDWEST INSTRUMENT 522A-025V-LE?

The MIDWEST INSTRUMENT 522A-025V-LE has a maximum static pressure of 1,000 psig, accuracy of ±5% of full scale, a Viton sensor, and an aluminum housing. Its transition points are: green from 0 psid to 11 psid, yellow from 11 psid to 18.5 psid, and red from 18.5 psid to 25 psid.

Where to buy the MIDWEST INSTRUMENT 522A-025V-LE worldwide?

You can source the MIDWEST INSTRUMENT 522A-025V-LE through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations, ensuring the indicator reaches your facility reliably.

How to install the MIDWEST INSTRUMENT 3-Color Differential Pressure Indicator?

Install the indicator by connecting it to the process lines per the manufacturer's guidelines, ensuring proper sealing to avoid leaks. Mount the aluminum housing securely, and verify the Viton sensor is compatible with the media. Calibrate the transition points using a reference pressure source for accurate color indication.

Used in

Common applications for MIDWEST INSTRUMENT
Filter monitoring in industrial water treatment — MIDWEST INSTRUMENT 522 series 3-color differential pressure indicators
Flow measurement in chemical processing — MIDWEST INSTRUMENT Series 120 piston-type differential pressure gauges
Liquid level indication in oil and gas storage tanks — MIDWEST INSTRUMENT Model 142 diaphragm-type differential pressure gauges
HVAC system filter condition monitoring — MIDWEST INSTRUMENT Series 130 differential pressure gauges with glass-reinforced plastic housing
Pump differential pressure monitoring in industrial plants — MIDWEST INSTRUMENT 522 series indicators with switch for alarm output
