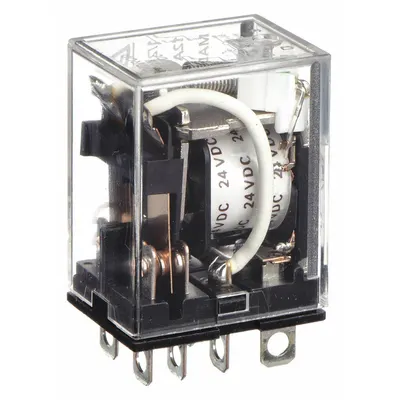

OMRON General Purpose Relay: Socket Mounted, 10 A Current Rating, 24V DC, DPDT
The OMRON LY Series General Purpose Relay is a socket-mounted, plug-in relay with a square base and flat pins. It features a DPDT contact configuration, a 10 A current rating, and operates at 24V DC with a…
SKU 3G-OTH-38486
Also listed as: LY2NDC24 · LY2N DC24
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The OMRON LY Series General Purpose Relay is a socket-mounted, plug-in relay with a square base and flat pins. It features a DPDT contact configuration, a 10 A current rating, and operates at 24V DC with a quick-connect electrical connection. The relay has an inductive load operating current of 5 A at 24V DC and includes 8 pins/terminals.
Frequently Asked Questions
What is the OMRON LY2N-DC24 general purpose relay used for?
The OMRON LY2N-DC24 is a socket-mounted DPDT relay used for industrial switching and control applications. It handles loads up to 10 A and operates at 24V DC, making it suitable for automation panels, motor controls, and signal switching in manufacturing and process industries.
What are the specifications of the OMRON LY2N-DC24 relay?
The OMRON LY2N-DC24 is a DPDT relay with a 10 A current rating, 24V DC coil voltage, and 8 quick-connect terminals. It has a square base, flat pins, and plug-in mounting. Inductive load operating current is 5 A at 24V DC. It is part of the LY Series.
Where to buy the OMRON LY2N-DC24 relay worldwide?
3G Electric supplies the OMRON LY2N-DC24 relay to customers worldwide. We handle full logistics, customs clearance, and delivery to your location. As a global industrial solutions provider, we source and deliver genuine OMRON relays and support your procurement needs across multiple regions.
How to install the OMRON LY2N-DC24 socket-mounted relay?
To install the OMRON LY2N-DC24, first ensure the socket is correctly wired and de-energized. Align the relay's flat pins with the socket's terminals, then press firmly until it clicks into place. Verify the coil voltage (24V DC) matches your control circuit before applying power.
Used in
Common applications for OMRONOMRON Products
3G Electric supplies OMRON socket-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
