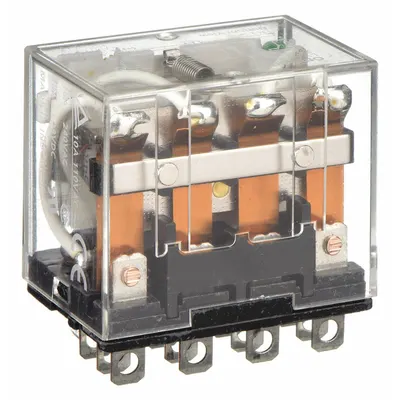

OMRON General Purpose Relay: Socket Mounted, 10 A Current Rating, 24V DC, 4PDT
The OMRON General Purpose Relay: Socket Mounted (SKU LY4N-DC24, MPN LY4N-DC24) is a plug-in relay from the LY Series with a square base and flat pins. It features a 4PDT contact configuration, 14 pins/terminals, and…
SKU 3G-OTH-38850
Also listed as: LY4NDC24 · LY4N DC24
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The OMRON General Purpose Relay: Socket Mounted (SKU LY4N-DC24, MPN LY4N-DC24) is a plug-in relay from the LY Series with a square base and flat pins. It features a 4PDT contact configuration, 14 pins/terminals, and quick-connect electrical connections. The relay operates at 24V DC with a resistive load current rating of 10 A at 110V AC.
Frequently Asked Questions
What is the OMRON LY4N-DC24 relay used for?
The OMRON LY4N-DC24 is a general-purpose relay used for switching resistive loads in industrial control panels, automation systems, and machinery. Its 4PDT configuration and 10 A rating at 110V AC make it suitable for signal switching, motor starters, and PLC output isolation.
What are the specifications of the OMRON LY4N-DC24 relay?
The OMRON LY4N-DC24 is a socket-mounted relay from the LY Series with a square base, flat pins, and quick-connect terminals. It operates at 24V DC, has a 4PDT contact arrangement, 14 pins, and a resistive load current rating of 10 A at 110V AC.
Where to buy the OMRON LY4N-DC24 relay worldwide?
You can source the OMRON LY4N-DC24 relay from 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this LY Series relay.
How to install the OMRON LY4N-DC24 relay?
To install the OMRON LY4N-DC24, plug the relay into a compatible square-base socket with quick-connect terminals. Ensure the coil voltage matches 24V DC and the load does not exceed 10 A at 110V AC. Secure the relay firmly and verify wiring per the pin diagram.
Used in
Common applications for OMRONOMRON Products
3G Electric supplies OMRON socket-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
